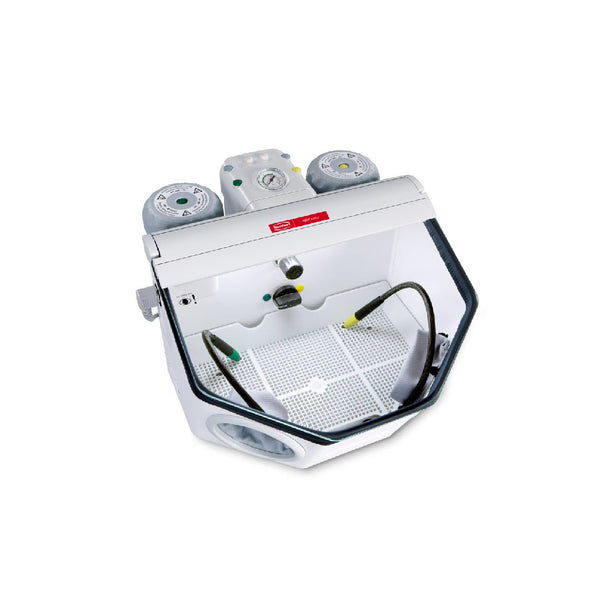

Basic master

Fine sandblasting unit

Fine sandblasting unit with 2 blasting tanks and large blasting chamber.



Advantage

  • Homogeneous and tension-free surfaces thanks to the special mixing chamber technology (Venturi principle), regardless of the fill level of the sandblasting tank.
  • High economic efficiency as there is no unnecessary after-flow of sandblasting material.
  • Targeted, precise sandblasting due to excellent illumination of the blasting chamber with LED technology.



 Detail

  • Large sandblasting chamber (20 l) allows ample freedom of movement.
  • Good, long-lasting visibility of the objects through silicone-coated glass panel (10x longer service life



Technical data

Name

Basic master, 25-70 µm/25-70 µm, 220-240 V

Basic master, 25-70 µm/70-250 µm, 220-240 V

Basic master, 70-250 µm/70-250 µm, 220-240 V

Basic master, 25-70 µm/25-70 µm, 100-120 V

Basic master, 25-70 µm/70-250 µm, 100-120 V

Article number

29482000

29482025

29482250

29484000

29484025

Permissible mains voltage

220–240 V

220–240 V

220–240 V

100–120 V

100–120 V

Permissible mains frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

Working pressure

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

Max. connection pressure

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

Air consumption

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

Intensity of lighting

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

Lamp power

16 W

16 W

16 W

16 W

16 W

Dimensions (W x H x D)

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

Tank capacity

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

Number of tanks

2

2

2

2

2

Blasting chamber volume

20 l
5.3 gal

20 l
5.3 gal

20 l
5.3 gal

20 l
5.3 gal

20 l
5.3 gal

Weight (empty, 2-tanks)

~8,1 kg
~17.9 lbs

~8,1 kg
~17.9 lbs

~8,1 kg
~17.9 lbs

~8,1 kg
~17.9 lbs

~8,1 kg
~17.9 lbs
