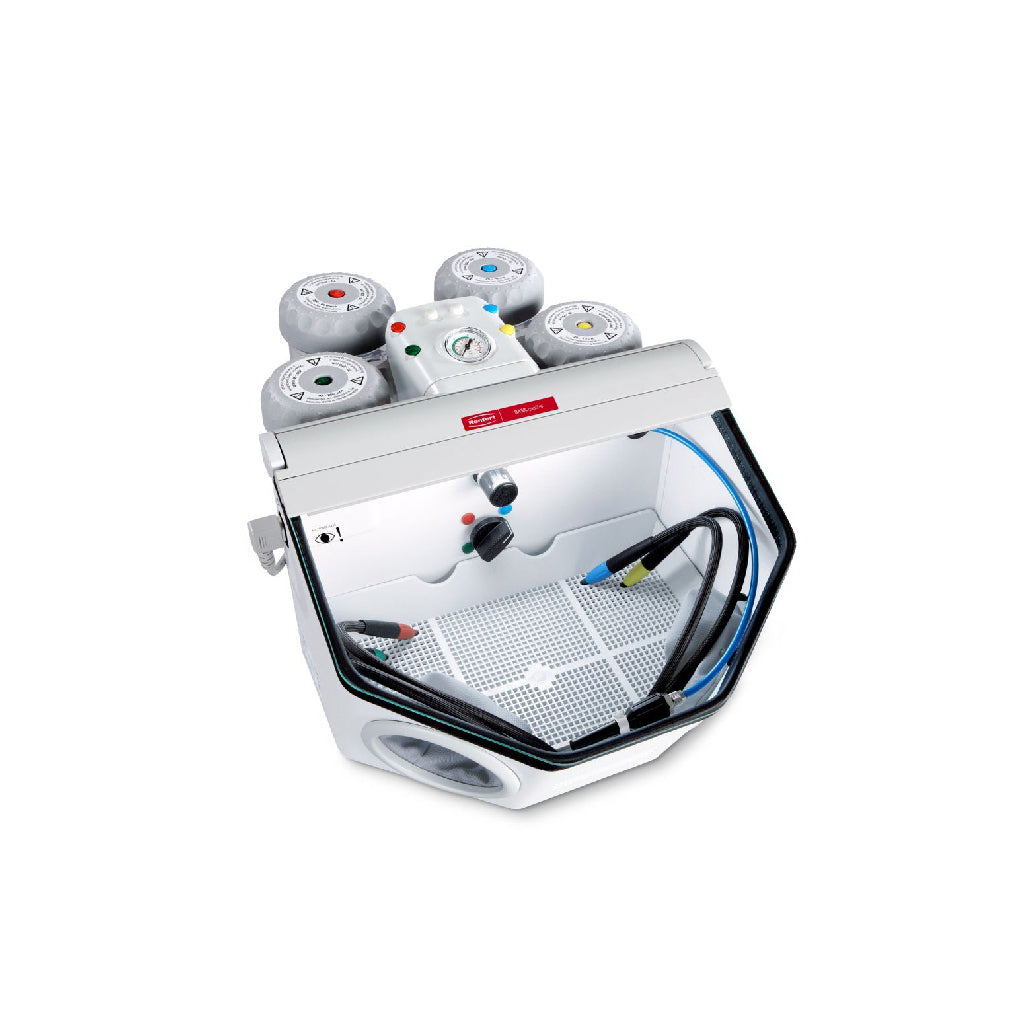

Basic quattro

Fine sandblasting unit

Professional fine sandblasting unit with 2-4 blasting tanks.



Advantage

  • Great cost efficiency through special mixing chamber technology (Venturi-Principle).
  • Easy to clean hand and object with the integrated jet nozzle.
  • Large sandblasting chamber (20 l) allows maximum freedom of movement



Detail

  • Precise sandblasting due to excellent illumination of the sandblasting chamber with LED technology.
  • Good, long-lasting visibility of the objects through silicone-coated glass panel (10x longer service life).




Technical data

Name

Basic quattro, 25-70 µm/70-250 µm, 220-240 V

Basic quattro, 25-70 µm/70-250 µm, 100-120 V

Article number

29580000

29581000

Permissible mains voltage

220–240 V

100–120 V

Permissible mains frequency

50/60 Hz

50/60 Hz

Working pressure

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

Max. connection pressure

6–8 bar
87–116 psi

6–8 bar
87–116 psi

Air consumption

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

Intensity of lighting

4800 lx

4800 lx

Lamp power

16 W

16 W

Dimensions (W x H x D) (1-2 tank version)

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

395 x 285 x 460 mm
15.6 x 11.2 x 18.1"

Dimensions (W x H x D) (3-4 tank version)

395 x 285 x 560 mm
15.6 x 11.2 x 22.0"

395 x 285 x 560 mm
15.6 x 11.2 x 22.0"

Tank capacity

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

Number of tanks

2–4

2–4

Blasting chamber volume

20 l
5.3 gal

20 l
5.3 gal

Weight (empty, 2-tanks)

~8,9 kg
~19.6 lbs

~8,9 kg
~19.6 lbs
