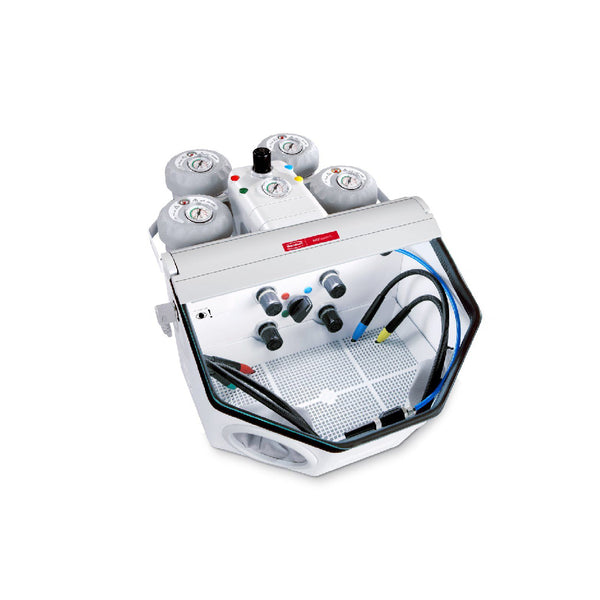

Basic quattro IS

Fine sandblasting unit

Professional fine sandblasting unit with 2-4 blasting tanks and the „IS“ (= Immediate Stop) technology for controlled sandblasting without an after-flow of sandblasting material.



Advantage

  • Saves up to 80% sandblasting material thanks to the air-sand mixture and the integrated "IS" immediate stop technology.
  • Enables pin-point precision while working, for example when sandblasting grooves or devesting intricate items.
  • Quick and safe operation with the help of individual pressure adjustment and indicator for each tank

Detail

  • Large sandblasting chamber (20 l) allows maximum freedom of movement.
  • Easy, tool-free tank extension via the quick-coupling and color-coded system.
  • Precise sandblasting due to excellent illumination of the blasting chamber with LED technology.
  • Good, long-lasting visibility of the objects through silicone-coated glass panel (10x longer service life).



Technical data

Name

Basic quattro IS, 25-70 µm/70-250 µm, 220-240 V

Basic quattro IS, 25-70 µm/70-250 µm, 100-120 V

Article number

29590000

29591000

Permissible mains voltage

220–240 V

100–120 V

Permissible mains frequency

50/60 Hz

50/60 Hz

Working pressure

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

Max. connection pressure

6–8 bar
87–116 psi

6–8 bar
87–116 psi

Air consumption

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

Intensity of lighting

4800 lx

4800 lx

Lamp power

16 W

16 W

Dimensions (W x H x D) (1-2 tank version)

395 x 320 x 510 mm
15.6 x 12.6 x 20.1"

395 x 320 x 510 mm
15.6 x 12.6 x 20.1"

Dimensions (W x H x D) (3-4 tank version)

395 x 320 x 610 mm
15.6 x 12.6 x 24.0"

395 x 320 x 610 mm
15.6 x 12.6 x 24.0"

Tank capacity

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

Number of tanks

2–4

2–4

Blasting chamber volume

20 l
5.3 gal

20 l
5.3 gal

Weight (empty, 2-tanks)

~11,5 kg
~25.4 lbs

~11,5 kg
~25.4 lbs
