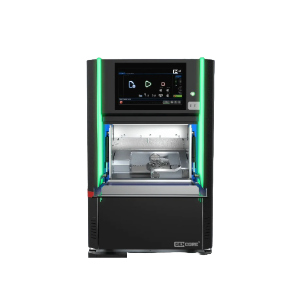

GenCore M AI° 5-Axis AI Wet & Dry Dental Milling Machine

GenCore M AI° 5-Axis AI Wet & Dry Dental Milling Machine

The GenCore M AI° is a next-generation 5-axis wet and dry dental milling machine engineered for high-precision, multi-material dental production.

Combining AI-powered automatic calibration, a premium SycoTec 1.37 kW DC spindle, full closed-loop axis control and high-precision mechanical components, M AI° is designed to deliver stable, accurate and repeatable milling across demanding restorative and implant workflows.

From zirconia and glass ceramics to titanium pre-milled blanks, M AI° provides dental laboratories and milling centres with a powerful and versatile platform for modern digital production.

Key Features

• AI Calibration – Fully automated calibration designed to minimise machining errors and maintain consistent milling accuracy.

• Simultaneous 5-Axis Milling – Advanced 5-axis movement supports complex restorations, undercuts and implant geometries.

• Wet & Dry Milling – Flexible hybrid workflow for both wet and dry dental materials.

• SycoTec 1.37 kW DC Spindle – Premium German spindle technology provides precise speed and torque control with strong low-speed performance.

• Up to 60,000 RPM – High-performance spindle for efficient multi-material dental milling.

• 100% Full Closed Loop Control – Real-time positional feedback across all five axes provides precise and stable machine movement.

• 400 W Servo Motors on All 5 Axes – High-performance servo control supports accurate and responsive machining.

• C5-Class Ball Screws – High-precision X, Y and Z-axis positioning for improved machining accuracy.

• Harmonic Drive Rotary Axes – A and B axes utilise precision Harmonic Drive technology to minimise backlash and provide stable rotary motion.

• 28 Tool Pockets – High-capacity tool management supports complex and multi-material production workflows.

• Four-Direction Coolant System – Cutting fluid is directed toward the tool from four directions to support stable wet milling.

• 90° Milling Capability – Enables advanced access to complex restoration geometries and undercut areas.

• 13.3" Touchscreen Interface – Large intuitive touchscreen provides convenient machine operation and workflow control.

AI-Powered Precision

M AI° introduces intelligent automated calibration into the dental milling workflow.

The AI Calibration system is designed to identify and compensate for machining variables that can affect production accuracy, helping laboratories maintain consistent results while simplifying routine calibration procedures.

Combined with a full closed-loop drive system, high-precision C5 ball screws and Harmonic Drive rotary axes, the M AI° provides a highly controlled mechanical platform for demanding restorative and implant production.

Premium SycoTec Spindle Technology

At the heart of M AI° is a 1.37 kW DC spindle manufactured by SycoTec in Germany.

The DC spindle provides precise speed and torque control with strong performance at lower rotational speeds, making it well suited to workflows requiring both high-speed restorative milling and controlled machining of demanding materials.

Applications

The GenCore M AI° is suitable for a broad range of dental laboratory applications, including:

• Crown & Bridge

• Inlay & Onlay

• Implant Crown

• Custom Abutment

• Titanium Pre-Milled Abutment

• Full-Arch Restoration

• Implant Bar

• Occlusal Splint

• Dental Model

Designed for Advanced Digital Production

M AI° combines intelligent calibration, precision mechanical components and multi-material wet and dry milling within a single production platform.

Its 5-axis full closed-loop architecture makes it particularly suitable for laboratories requiring consistent production across restorative, implant and complex full-arch workflows.

Complete GenCore Support in Australia

Dental Dynamics Australia provides complete support for GenCore digital dental milling workflows, including equipment consultation, installation, training, CAM workflow setup and ongoing technical support.

Our team can assist with integrating the GenCore M AI° into your existing laboratory or milling centre workflow, from CAD/CAM setup and calibration through milling optimisation and ongoing production support.
