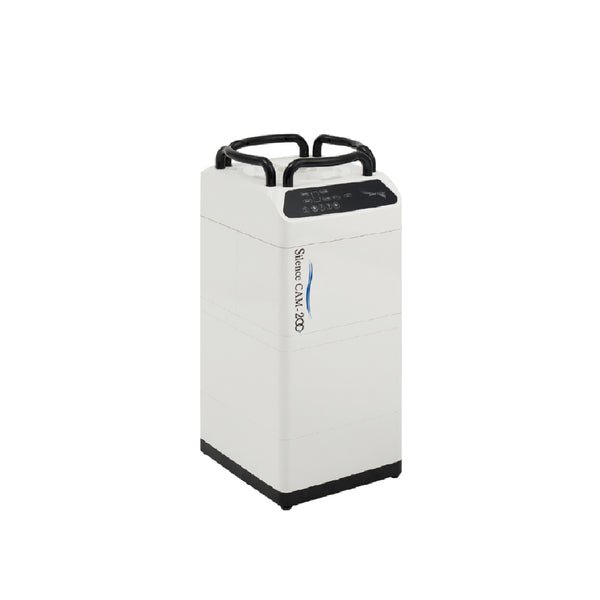

Ko-max Silence-CAM200 is an extraction device for suction of dust generated in dentistry. CAM equipment. You can manually control the suction through the touch pad. Automatic suction through CAM equipment. Suction linkage possible Suction operation by receiving signals from various CAM equipment The status of this device is output as a contact signal. The suction performance is fixed and cannot be changed.
Ā
Specifications
Product tyep : Silence Extraction Systems of Micromotor typ
Materials : ABS, PC
Power supply : Single phase AC 220V~240V 50~60HzĀ
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Single phase ACĀ 100V~120V 50~60Hz
Output power : 1247Wć120Vć, 1251Wć230Vć
Current(A) : 120Vć10Ać, 230Vć5.2Ać
Max. Air flow : 3700L/min
Max. Air pressure : 23kpa ć50ĆćĀ
Control mode : step 1~9
Filter : 1st filterćMedium filterć
Ā Ā Ā Ā Ā Ā 2nd filterćULPA filterć 99.9995%ćU15ć
Ā Ā Ā Ā Ā Ā 3rd filterćCarbon filterć, 4th filterćNoise blockć
Noise : Approx. 55dB (at Max level)
Motor operating temperature : 0~40ā
Body size : 295ćWć * 330ćDć *695ćHć mm
Product standard components : Main unit, filters, Suction hose Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 2.5meter,Ā Power plug, Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā CAM interlocking cable
Ā
Silence principle
