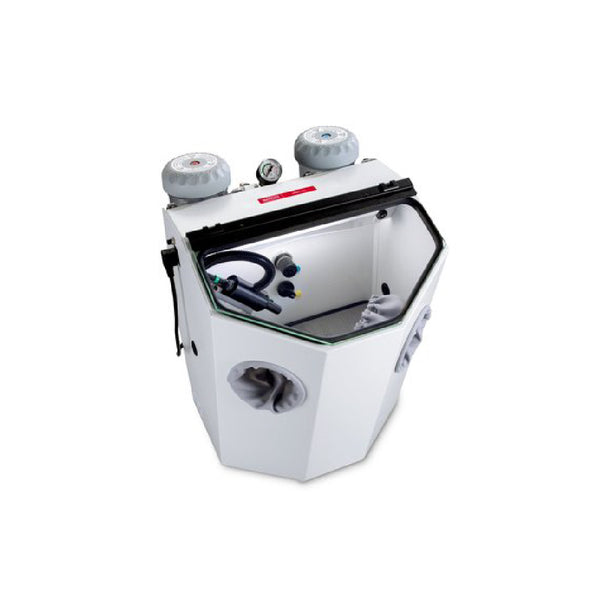

Vario basic

Recyclable and fine sandblasting unit

The compact combination of recyclable sandblaster and microblaster. A cost-effective, multifunctional solution for all relevant sandblasting work in the dental laboratory.



Advantage

  • Can be upgraded with 1 to 4 microblasting tanks.
  • 50% less abrasive consumption due to intelligent extraction system (only unusable fine dust is removed).
  • PerfectView: Innovative LED Technology for best contour and detail recognition.



Detail

  • Individually adjustable recycling nozzle with the integrated Venturi principle and efficient sandblasting.
  • Highly resistant coated glass panel.
  • Replaceable, washable cuffs.
  • Powder-coated metal housing.
  • Internal tank selection switch for each microblaster tank, recycling sandblast operation or choice of an external compressed air unit.
  • IT-Handpiece with exchangeable nozzles.
  • Filter control with manual water separator for cleaning the supplied compressed air.
  • Highly resistant boron carbide nozzle optionally available.
  • Inlet opening and connection for a compressed air driven unit (e.g. deflasking chisel).





Technical data

Name

Vario basic, 220-240 V

Vario basic, 100-120 V

Article number

29600005

29601005

Permissible mains voltage

220–240 V

100–120 V

Permissible mains frequency

50/60 Hz

50/60 Hz

Working pressure

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

Max. connection pressure

6–8 bar
87–116 psi

6–8 bar
87–116 psi

Air consumption

200 l/min (6 bar)
7.06 cfm (87 psi)

200 l/min (6 bar)
7.06 cfm (87 psi)

Intensity of lighting

4800 lx

4800 lx

Lamp power

16 W

16 W

Dimensions (W x H x D) (0–2 tank version)

380 x 540 x 450 mm
15.0 x 21.3 x 17.7"

380 x 540 x 450 mm
15.0 x 21.3 x 17.7"

Dimensions (W x H x D) (3-4 tank version)

380 x 540 x 540 mm
15.0 x 21.3 x 21.3"

380 x 540 x 540 mm
15.0 x 21.3 x 21.3"

Tank capacity

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

Number of tanks

0–4

0–4

Blasting chamber volume

23 l
6.1 gal

23 l
6.1 gal

Weight (empty without tanks)

~14 kg
~31 lbs

~14 kg
~31 lbs
