Vibrax

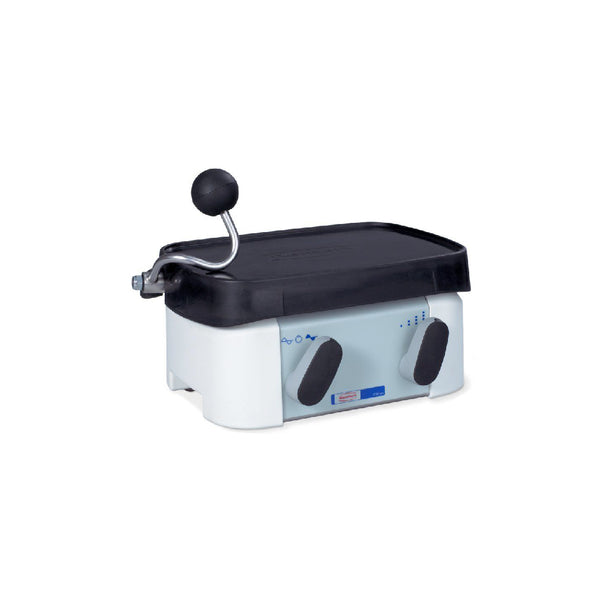

Vibrator

The wide-ranging vibration spectrum optimally processes any material. The functionally sophisticated handling enables comfortable use even under difficult conditions.

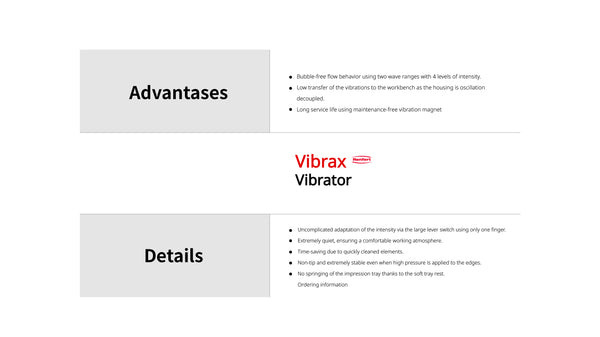

Advantage

  • Bubble-free flow behavior using two wave ranges with 4 levels of intensity.
  • Low transfer of the vibrations to the workbench as the housing is oscillation decoupled.
  • Long service life using maintenance-free vibration magnet



 Detail

  • Uncomplicated adaptation of the intensity via the large lever switch using only one finger.
  • Extremely quiet, ensuring a comfortable working atmosphere.
  • Time-saving due to quickly cleaned elements.
  • Non-tip and extremely stable even when high pressure is applied to the edges.
  • No springing of the impression tray thanks to the soft tray rest

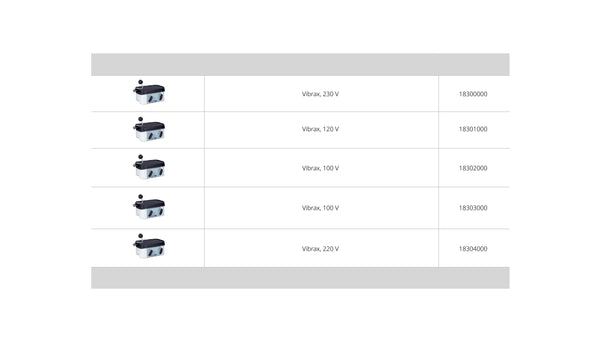

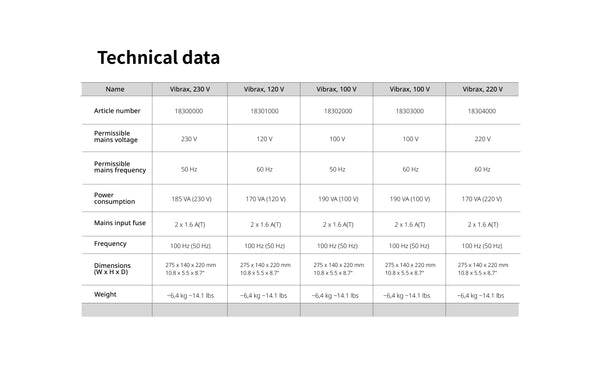

Technical data

Name

Vibrax, 230 V

Vibrax, 120 V

Vibrax, 100 V

Vibrax, 100 V

Vibrax, 220 V

Article number

18300000

18301000

18302000

18303000

18304000

Permissible mains voltage

230 V

120 V

100 V

100 V

220 V

Permissible mains frequency

50 Hz

60 Hz

50 Hz

60 Hz

60 Hz

Power consumption

185 VA (230 V)

170 VA (120 V)

190 VA (100 V)

190 VA (100 V)

170 VA (220 V)

Mains input fuse

2 x 1.6 A(T)

2 x 1.6 A(T)

2 x 1.6 A(T)

2 x 1.6 A(T)

2 x 1.6 A(T)

Frequency

100 Hz (50 Hz)

100 Hz (50 Hz)

100 Hz (50 Hz)

100 Hz (50 Hz)

100 Hz (50 Hz)

Dimensions (W x H x D)

275 x 140 x 220 mm
10.8 x 5.5 x 8.7"

275 x 140 x 220 mm
10.8 x 5.5 x 8.7"

275 x 140 x 220 mm
10.8 x 5.5 x 8.7"

275 x 140 x 220 mm
10.8 x 5.5 x 8.7"

275 x 140 x 220 mm
10.8 x 5.5 x 8.7"

Weight

~6,4 kg
~14.1 lbs

~6,4 kg
~14.1 lbs

~6,4 kg
~14.1 lbs

~6,4 kg
~14.1 lbs

~6,4 kg
~14.1 lbs
