■ for speed and conventional sintering

■ 500 - program memory

■ 5 + 1 freely programmable heating ramps

POWER-FAIL-CONTROL (PFC) ASSISTANCE IN CASE OF A POWER CUT

In case of an unforeseen brief interruption in the power supply, the PFC is activated: the electronics then decides whether the sintering process is aborted or ended normally, depending on the temperature loss that occurs. In any case, at the end of the program the user is informed on the display of the duration of the interruption during a ramp-up or holding phase so that the quality of the sintered object can be assessed.

INDIVIDUAL SINTERING PROCESS

Time and energy effi ciency play an important role in the modern dental laboratory. Therefore not only conventional sintering cycles, but also speed processes can be programmed in the S430 in order to be able to work with the greatest cost-eff ectiveness. All heating phases (maximally fi ve) allow the free input of a heating rate from 1 °C to 100 °C/min. The sum of all holding times is 420 minutes at the most

MOLYBDENUM DISILICIDE HEATING ELEMENTS FOR SPEED AND LONG-TERM SINTERING PROCESSES

The four molybdenum disilicide heating elements ensure the homogeneous distribution of heat in the fi ring chamber. Zirconium frameworks are manufactured to the highest quality standards, whether a conventional sintering process or the time and energy-saving speed process is used

REGENERATION PROGRAM FOR CONSTANTLY RENEWABLE HEATING ELEMENTS

This program protects against the „burning“ of the heating elements. A sort of protective layer is thereby formed on the surface of the heating rods and prevents a deterioration in the effectiveness of the heating. The service life of the heating elements is noticeably extended

2 LEVELS OF SINTERING DISHES WITH LARGE FIRING CHAMBER

The newly developed Zubler sintering dish system is characterised by special material characteristics in daily use. In a similar way to a thermal protective shield, the high-purity material ensures a homogeneous distribution of the temperature inside the carrier and protects the sintering objects against discolourations

TTC - LINEAR COOLING PHASE FOR THE SAFETY OF YOUR ZIRCONIUM OXIDE FRAMEWORKS

The proven TTC mode (time-temperature-cooling) is available to you in the VARIO S430. The special feature of this process is that the sintered objects are returned to room temperature in an actively controlled, linear cooling process in order to avoid damage

LOW CONSEQUENTIAL COSTS

The high energy effi ciency of 1.12 W/cm 3 and the innovative control of the heating are responsible for low consequential costs in the daily use of the furnace. In addition, they guarantee a long service life of the individual molybdenum disilicide elements (MoSi 2 ), which can be replaced individually in case of failure

INCLUDED:

2 x Sintering bowls

1x Power Cord
1x Sintering bowl tongs
1x Sintering lid
1x Upper table insulation
1x Base Table Insulation
1x Sintering Dish Support Ring
1x 16 amp fuse
1x USB stick with operating software, program data set, operating instructions
1x Quick Start Guide

40g Sintering beads
40g Sintering granulate

Premium Impression

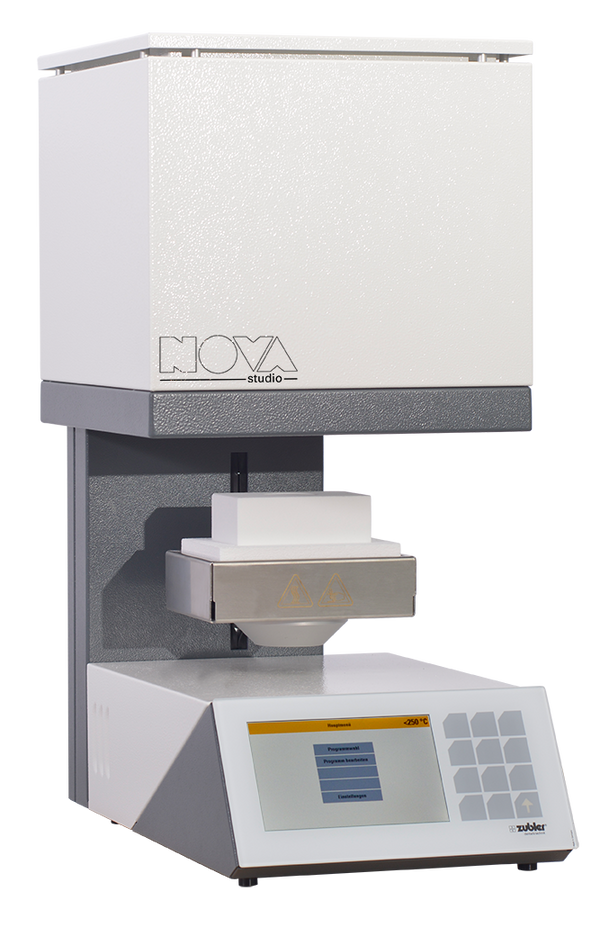

NOVA Studio- all-in-one sintering furnace
