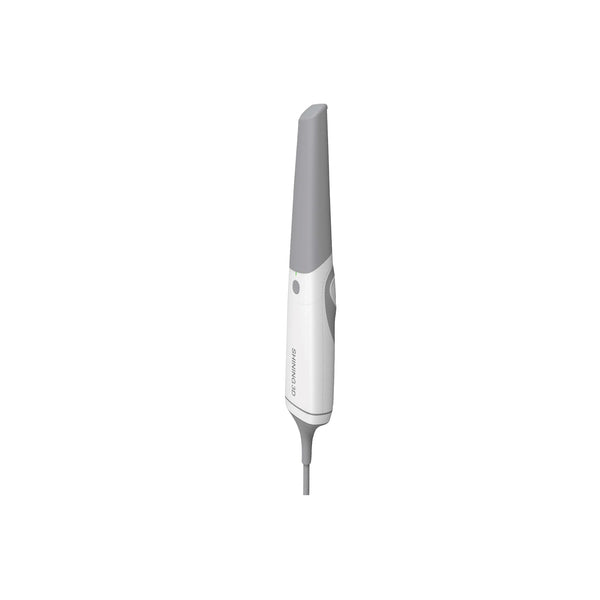

Aoralscan3
Features
AI Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.
30% More Accurate
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.
Impressive Speed
Single arch in 25s, Full arch in 1 min
Technical Specifications
| Scan Field | Standard scanner tip: 16 mm × 12 mm × 22 mm Mini scanner tip: 12 mm × 9 mm × 22 mm |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L × W × H) | 281 mm × 33 mm × 46 mm |
| Weight | 240 ± 10 g (without cables) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3 A |
Recommended PC Configuration
| CPU | Intel Core i7-8700 or higher |
| RAM | 16GB or more |
| Hard Disk Drive | 256 GB SSD or above |
| Graphic Card (GPU) | NVIDIA ® RTX 2060 6GB DDR3 or higher |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems |
| Screen Resolution | 1920×1080, 60 Hz or higher |
| I/O Ports | More than 2 Type-A USB 3.0 (or higher) ports |
