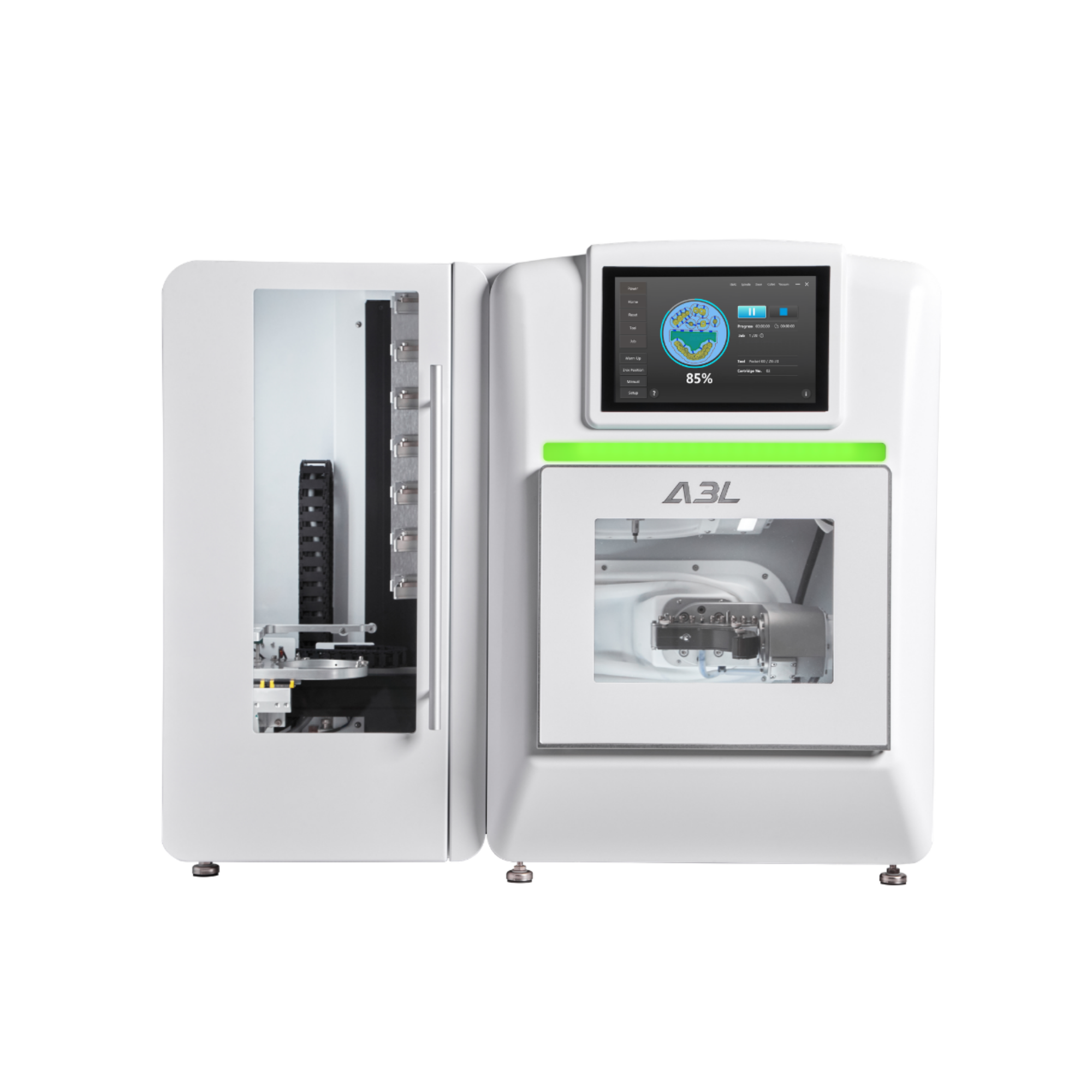

ARUM A3L 5-Axis Dry Dental Milling Machine with Automatic Loader

ARUM A3L 5-Axis Dry Dental Milling Machine with Automatic Loader

The ARUM A3L is a compact 5-axis dry dental milling machine with an automatic loading system, designed for dental laboratories requiring efficient, reliable and continuous production.

Building on the capabilities of the ARUM A3, the A3L features a 7-disc automatic cartridge system, enabling continuous milling of up to 7 zirconia discs. It can also automatically process up to 21 hybrid ceramic blocks, making it ideal for overnight and high-volume production workflows.

Key Features

• 5-Axis Dry Milling Technology – Designed for accurate and efficient production of complex dental restorations.

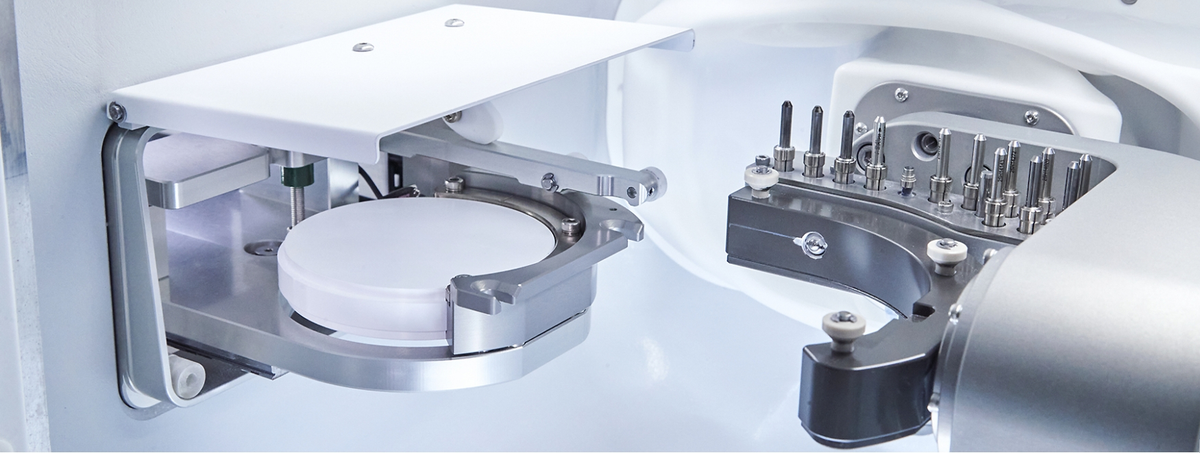

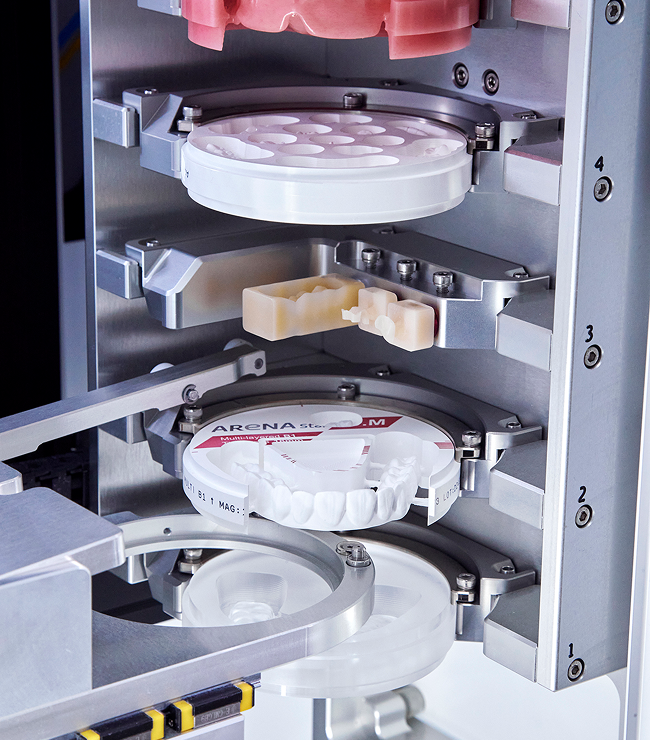

• 7-Disc Automatic Loader – Supports continuous automatic milling of up to 7 zirconia discs.

• Up to 21 Hybrid Ceramic Blocks – Automated block processing expands unattended production capability.

• 24/7 Automated Production – Ideal for laboratories requiring continuous and overnight milling.

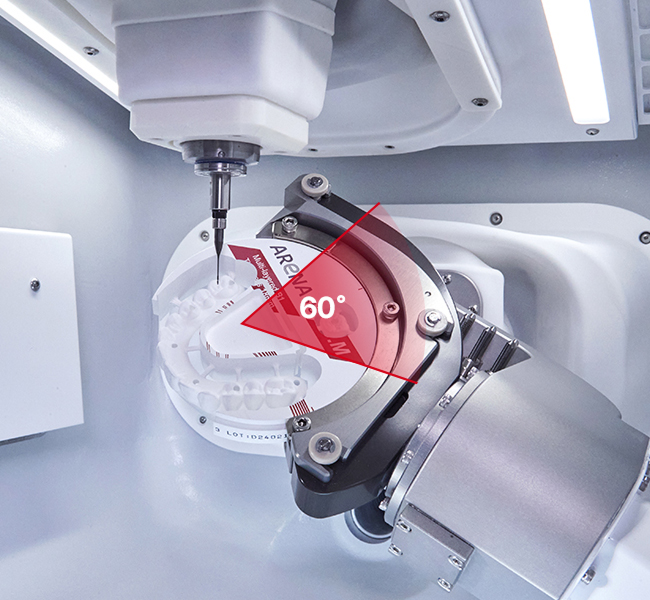

• Up to 60° B-Axis Rotation – Provides enhanced access to screw channels, undercuts and complex angled geometries.

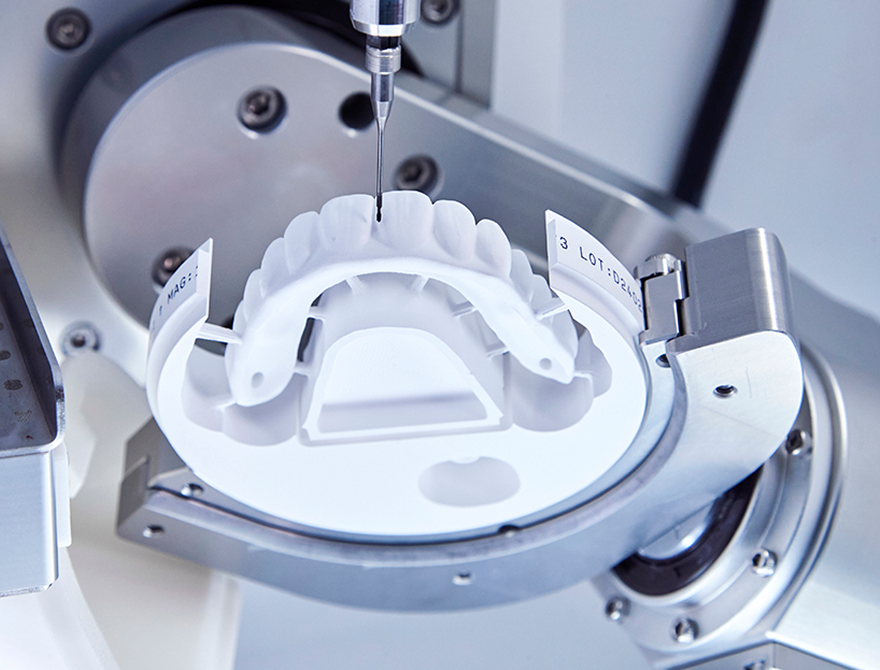

• 360° A-Axis Rotation – Supports detailed machining of full-contour restorations, dentures and gingival areas.

• 0.3 mm Fine Milling Capability – Enables detailed milling of complex prosthetic anatomy.

• 90° Labial Milling – Provides advanced access for detailed labial and buccal surface machining.

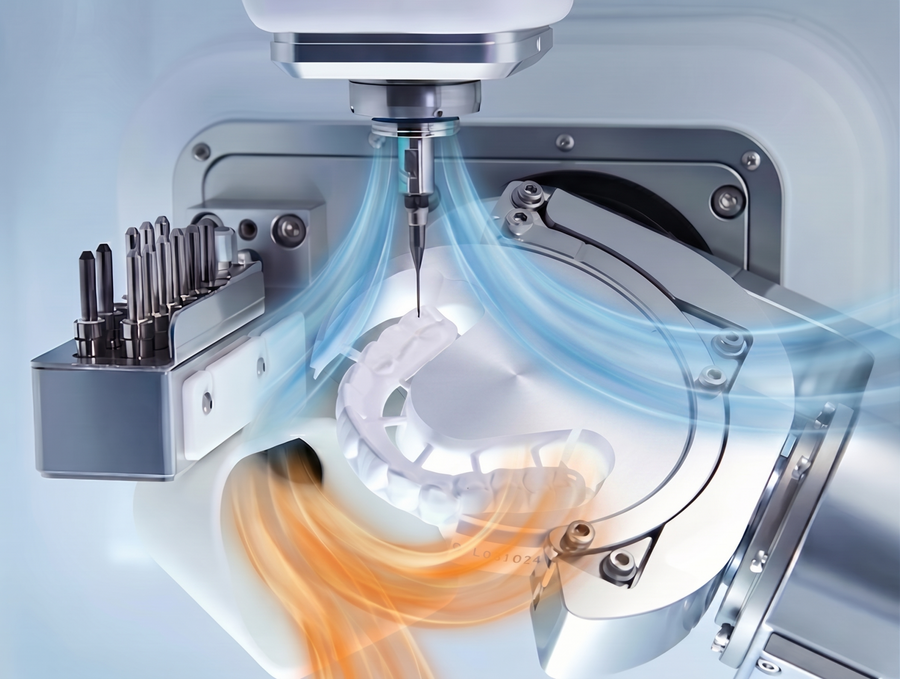

• Automatic Cleaning System – Automatic cleaning before and after milling helps maintain a clean and stable milling environment.

• Built-In Compressor Technology – No external compressed air supply is required.

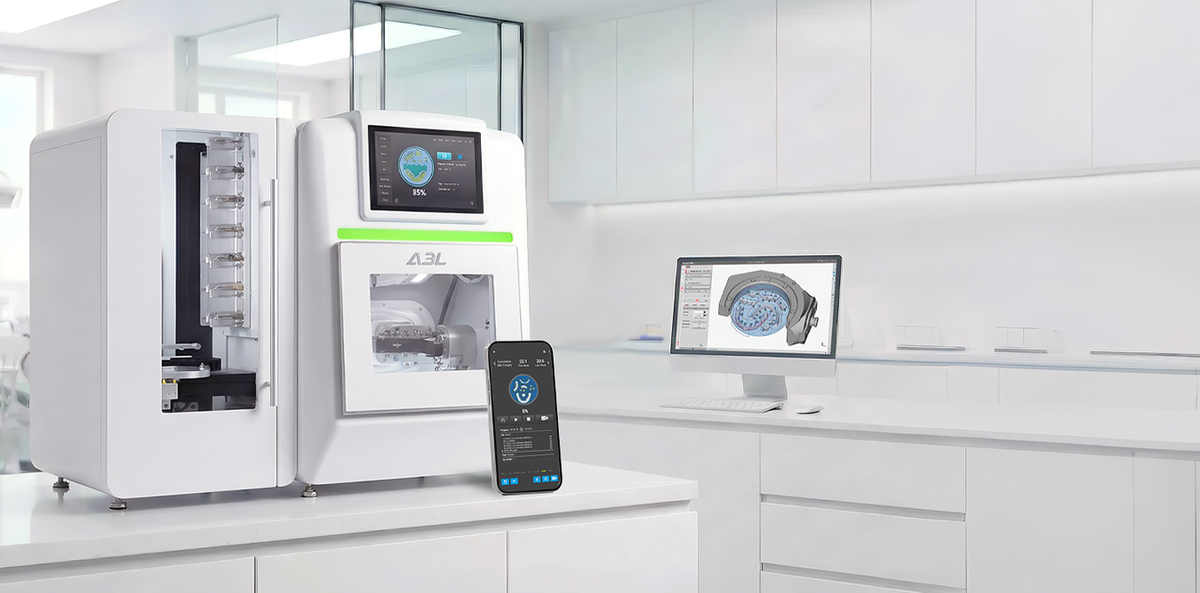

• IoT Control & Real-Time Monitoring – Smart connectivity enables live production tracking and more efficient workflow management.

• Compact Laboratory Design – High-capacity automated production in a space-efficient system.

Applications

The ARUM A3L supports a wide range of dental laboratory applications, including:

• Crown & Coping

• Crown & Coping Bridge

• Screw-Retained Bridge

• Inlay & Onlay

• Hybrid Abutment

• Full-Arch Restorations

• Bite Splint

• Denture

Automated Production for Modern Dental Laboratories

The A3L is designed for laboratories that need greater production capacity without moving to a significantly larger milling platform.

Its 7-disc automatic loading system enables multiple jobs to be prepared in advance and processed continuously, helping laboratories extend production beyond normal working hours and improve overall equipment utilisation.

Complete Digital Dentistry Support in Australia

Dental Dynamics Australia provides complete support for ARUM digital dental workflows, including equipment consultation, installation, training, CAM workflow setup and ongoing technical support.

Our team can assist with integrating the ARUM A3L into your existing digital production workflow, from scanning and CAD design through CAM nesting, automated milling and final production.
