01 / PRINT

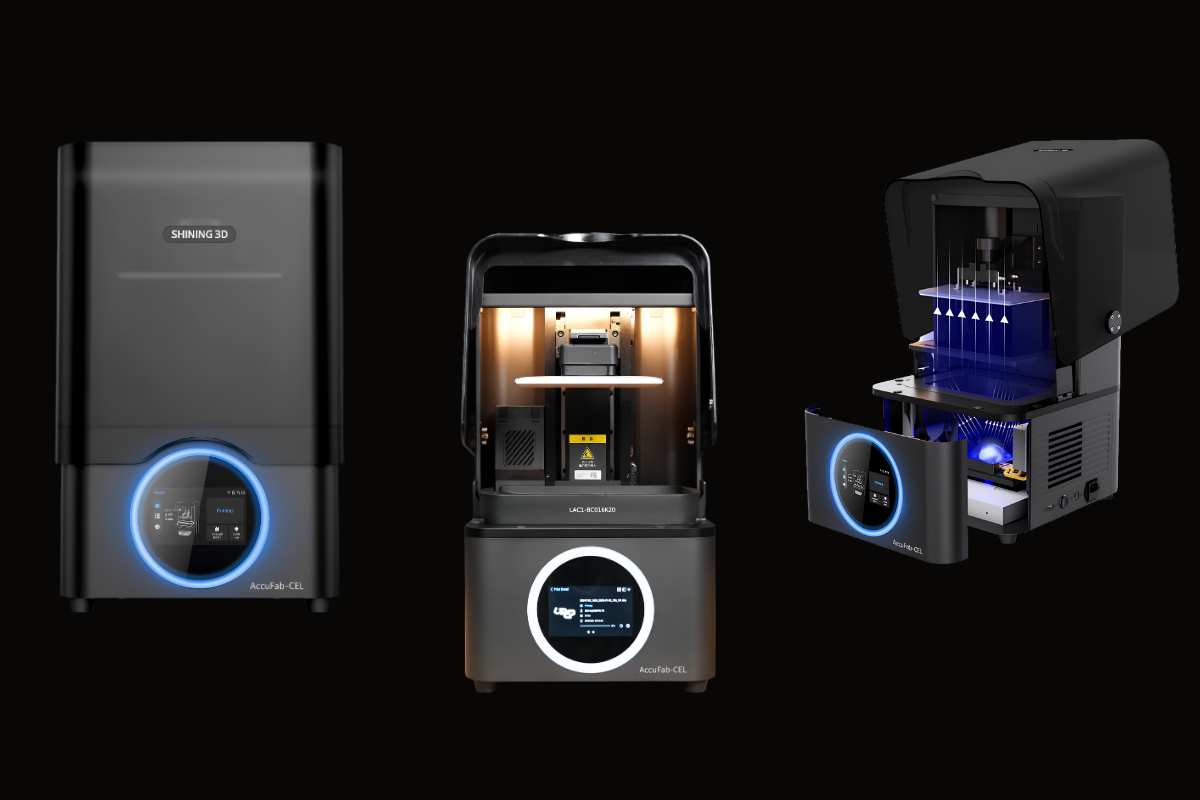

AccuFab-CEL
High-speed dental 3D printing for everyday digital production.
Double click image to zoom in
Click image to open expanded view
SEE THE WORKFLOW
Print. Wash. Cure.
See Each Step in Action.
Explore each stage of the complete SHINING 3D dental printing workflow.
02 / WASH
FabWash
Automated part release, washing and drying.
03 / CURE
FabCure 2
Controlled UV and thermal post-curing.
ACCUFAB-CEL · DENTAL 3D PRINTING
High-Speed Dental
3D Printing.
Add fast, accurate and flexible dental 3D printing to your existing digital production workflow with AccuFab-CEL.
±35 μm Accuracy
Up to 100 mm/h
Open Material System
SELECTED CONFIGURATION
AccuFab-CEL · Printer Only
Ideal when you already have suitable washing and post-curing equipment.

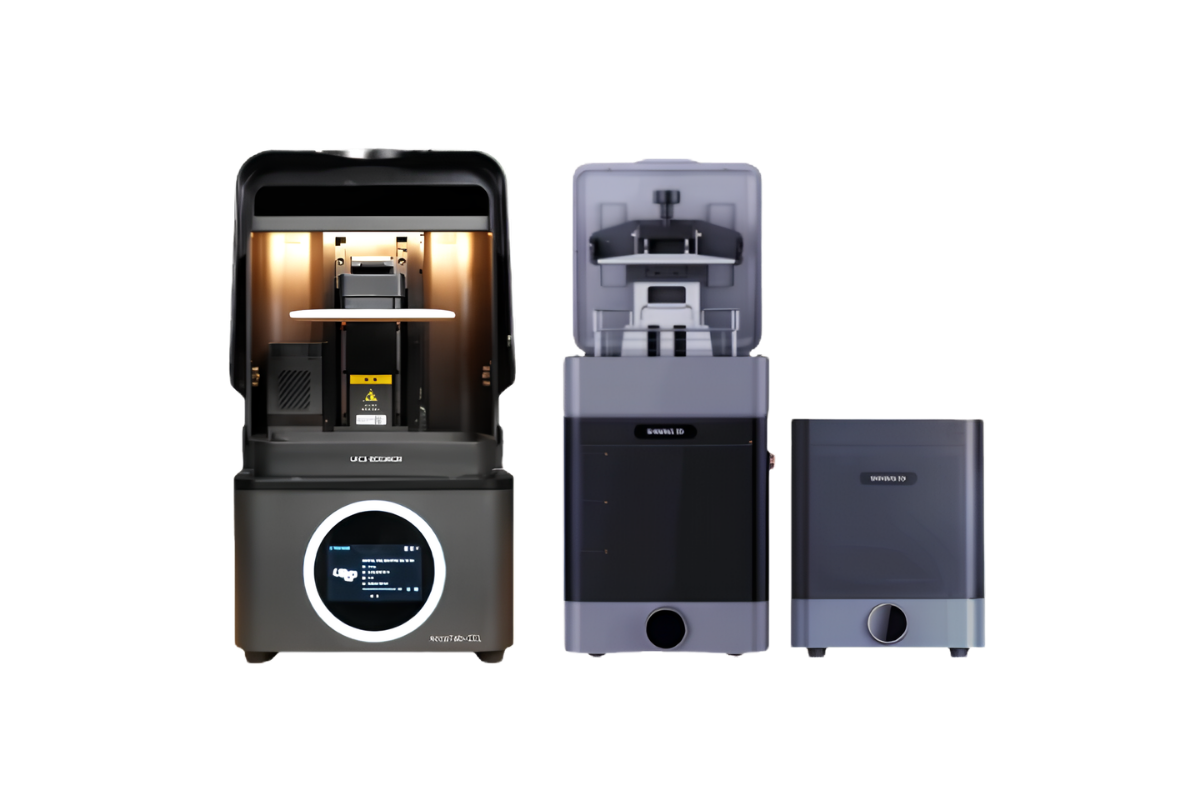

COMPLETE DENTAL 3D PRINTING SYSTEM
Print. Wash. Cure.
One Complete Workflow.
Combine AccuFab-CEL, FabWash and FabCure 2 into one streamlined print-to-finish production system for your dental laboratory or clinic.
AccuFab-CEL
FabWash
FabCure 2
SELECTED CONFIGURATION
Complete Print + Wash + Cure Package
Three coordinated systems for one complete dental 3D printing workflow.
3D PRINTERAccuFab-CEL
PRINTAccuFab-CEL
→
WASHFabWash
→
CUREFabCure 2
±35 μmPrinting Accuracy
100 mm/hMaximum Print Speed
192 × 120 mmLarge Build Area
50–100 μmLayer Thickness
YOUR CONFIGURATION
AccuFab-CEL
Printer Only
A practical choice if your laboratory or clinic already has suitable washing and post-curing equipment. AccuFab-CEL can be integrated into your existing digital production environment.
What's Included
AccuFab-CEL
INCLUDED
Dental 3D printer
FabWash
OPTIONAL
Automated post-processing
FabCure 2
OPTIONAL
Professional post-curing
COMPLETE PACKAGE
Three Systems.
One Workflow.
Printing, automated cleaning and professional post-curing are brought together in one coordinated SHINING 3D production workflow.
Package Includes
AccuFab-CEL
INCLUDED
Dental 3D printer
FabWash
INCLUDED
Automatic part release, washing and drying
FabCure 2
INCLUDED
Professional UV + thermal post-curing
DENTAL APPLICATIONS
One Printer.
Multiple Workflows.
Produce a wide range of dental applications from one flexible printing platform.
01
Dental Models
Restorative, implant and orthodontic model production.
02
Crown & Bridge
Compatible temporary and restorative workflows.
03
Surgical Guides
Digital guide production for implant workflows.
04
Splints
Occlusal appliance workflows using compatible resins.
05
Dentures
Digital removable and denture production workflows.
06
Implant Models
Detailed implant models for restorative production.
PRODUCTIVITY
Less Waiting.
More Production.
High-speed printing helps reduce bottlenecks across routine dental production.
Indicative print times based on manufacturer testing at 100 μm. Actual print time may vary depending on resin, layer thickness, geometry, orientation and print settings.14MINOrthodontic Model
11MINCrown & Bridge
20MINSurgical Guide
20MINImplant Model
45MINSplint
70MINDenture
ACCUFAB-CEL
Designed for Smarter
Daily Printing.
01
Intelligent Cabin Control
Real-time temperature and humidity monitoring with automatic cabin heating when required.
02
Multi-Size Ceramic Platform
Flexible platform options for smaller and larger production jobs.
03
Open Material System
Flexible resin workflows across compatible validated dental materials.
04
One-Click Platform Lock
Simplified build platform handling for faster daily setup and changeover.
05
Intelligent Print Preparation
AccuWare supports layout, support generation and slicing.
06
Connected Workflow
Designed to work within the wider SHINING 3D dental ecosystem.
PRINTER ONLY
Add CEL to Your
Existing Workflow.
Keep your current wash and curing system while upgrading the printing stage with AccuFab-CEL.
01DesignCAD / STL
→
02PrintAccuFab-CEL
→
03WashExisting System
→
04CureExisting System
COMPLETE PRODUCTION SYSTEM
Print → Wash → Cure
Three coordinated systems designed to take your dental print from digital file to finished component.
01 / PRINTAccuFab-CEL
→
Precision dental 3D printing.
02 / WASHFabWash
→
Automated part release, washing and drying.
03 / CUREFabCure 2
Controlled UV and thermal post-curing.
AUTOMATED POST-PROCESSING

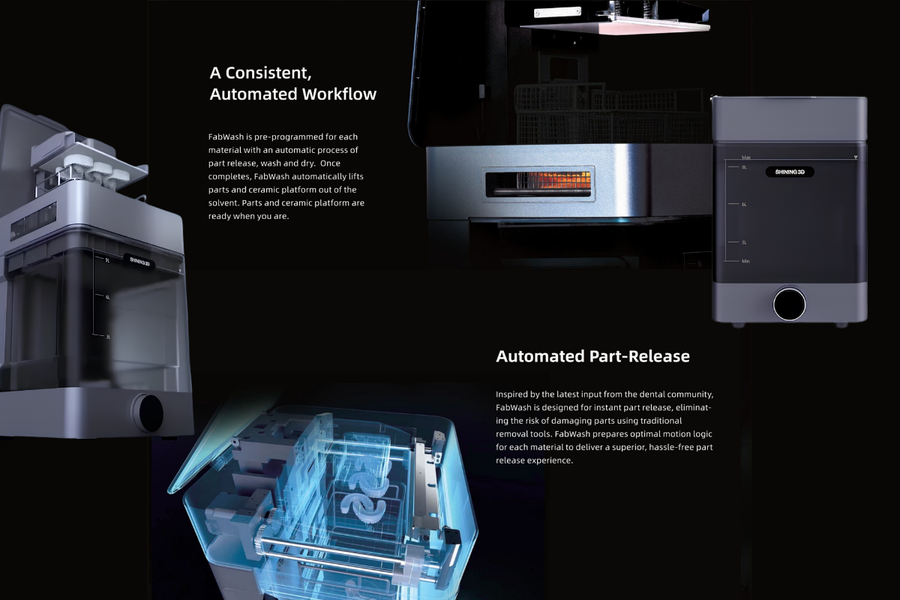

FabWash
Part Release · Wash · Dry
FabWash automates routine post-printing stages by combining part release, washing and drying into one streamlined post-processing system.
01Automatic Part Release
Helps reduce manual handling following printing.
02Automated Washing
Controlled cleaning for routine resin processing.
03Integrated Drying
Supports a smoother transition to curing.
04Connected Workflow
Designed for the SHINING 3D dental ecosystem.
MAX PART SIZE199 × 124 × 180 mm
AGITATIONMagnetic Impeller
CONNECTIVITYWi-Fi
WORKFLOWCEL Compatible
PROFESSIONAL POST-CURING

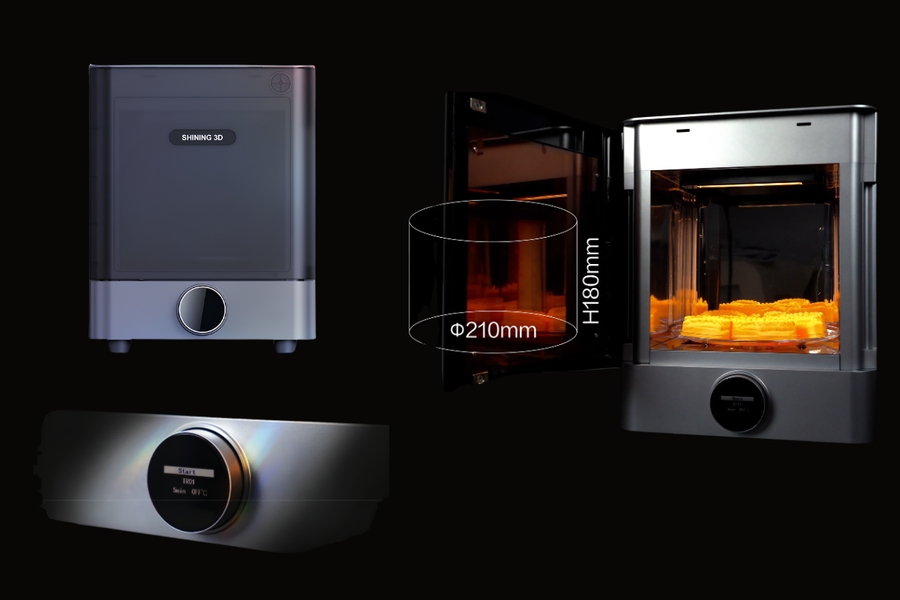

FabCure 2
UV Light + Controlled Heat
FabCure 2 provides controlled UV illumination and heating to complete compatible dental resin post-curing workflows.
01Multi-Directional UV
30 LEDs provide broad curing coverage.
0270 W LED Power
Professional high-output UV illumination.
03Heating up to 60°C
Controlled thermal processing when required.
04Material Profiles
Simplified material-specific curing workflows.
CURING VOLUMEØ210 × H180 mm
WAVELENGTH385–405 nm
LED POWER70 W
TEMPERATUREUp to 60°C
TECHNICAL SPECIFICATIONS
AccuFab-CEL
High-speed dental 3D printing with flexible build platform options for professional production.
Resolution5760 × 3600
Print Volume70 × 70 × 180 mm
192 × 120 × 180 mm
192 × 120 × 180 mm
Maximum Print SpeedUp to 100 mm/h
Printing Accuracy±35 μm
Layer Thickness50–100 μm
Printer Dimensions360 × 360 × 530 mm
Printer Weight22 kg
ConnectivityUSB / Wi-Fi / Ethernet
DENTAL DYNAMICS AUSTRALIA
More Than Equipment.
A Supported Digital Workflow.
DDA helps configure the right system around your applications, materials, production volume and existing digital equipment.
01Workflow Consultation
Configure your system around real production needs.
02Installation & Setup
Professional setup and system configuration.
03Training
Practical training for your lab or clinical team.
04Material Workflow
Guidance around applications and compatible resins.
05Local Technical Support
Australian-based support when you need it.
EXPERT CONTACT
Talk to a Digital
Dentistry Expert.
Not sure whether AccuFab-CEL Printer Only or the complete Print → Wash → Cure package is right for your workflow?
Talk to Dental Dynamics Australia about your applications, production volume, resin requirements and existing digital equipment.
Australia-wide workflow consultation, installation, training and technical support.
NEED HELP CHOOSING?
Build the Right
Build the Right
3D Printing Workflow.
We can help determine the right configuration around what you actually produce.
01Workflow Planning
Printer-only or complete Print → Wash → Cure configuration.
02Application & Material Advice
Match your applications with suitable resin and post-processing workflows.
03Equipment Integration
Assess compatibility with your existing scanner, CAD and production setup.
04Installation & Training
Get your team configured, trained and ready for daily production.
05Local Technical Support
Australian-based support for your ongoing digital workflow.
DDA SUPPORTWorkflow + Productivity + Local Support
