Basic eco

Fine sandblasting unit

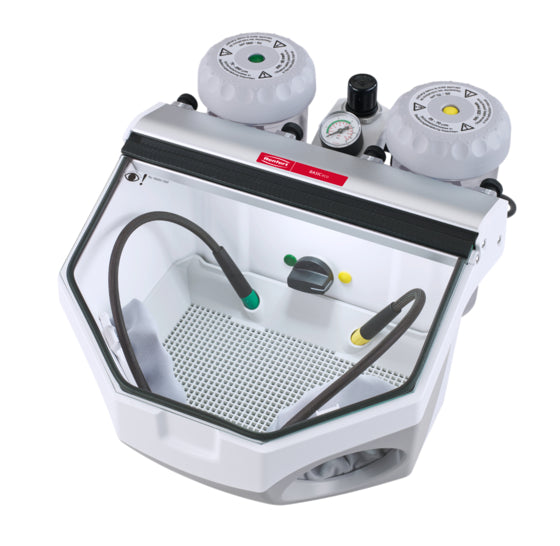

Compact, fine sandblasting unit with 1 or 2 blasting tanks.



Advantage

  • Great cost efficiency through special mixing chamber technology (Venturi-Principle).
  • Precise sandblasting due to excellent illumination of the blasting chamber with LED technology

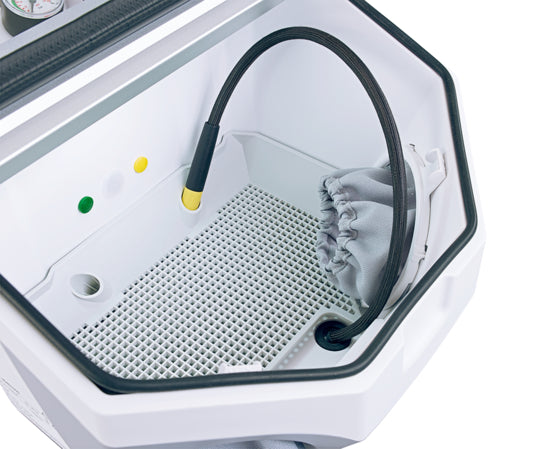

  • Sufficient freedom of movement in the large sandblasting chamber (10 l).



Detail

  • Tool-free extension to 2 tanks.



Technical data

Name

Basic eco, 25-70 µm, 230 V

Basic eco, 70-250 µm, 230 V

Basic eco, 25-70 µm/70-250 µm, 230 V

Basic eco, 25-70 µm, 120 V

Basic eco, 70-250 µm, 120 V

Basic eco, 70-250 µm/70-250 µm, 120 V

Basic eco, 25-70 µm/70-250 µm, 120 V

Basic eco, 25-70 µm/70-250 µm, 100 V

Basic eco, 25-70 µm, 100 V

Basic eco, 70-250 µm, 100 V

Article number

29491050

29491250

29492025

29493050

29493250

29494250

29494025

29495025

29495050

29495250

Permissible mains voltage

220–240 V

220–240 V

220–240 V

120 V

120 V

120 V

120 V

100 V

100 V

100 V

Permissible mains frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

Working pressure

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

1–6 bar
14.5–87 psi

Max. connection pressure

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

6–8 bar
87–116 psi

Air consumption

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

98 l/min (6 bar)
3.46 cfm (87 psi)

Intensity of lighting

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

4800 lx

Lamp power

9 W

9 W

9 W

9 W

9 W

9 W

9 W

9 W

9 W

9 W

Dimensions (W x H x D)

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

350 x 275 x 400 mm
13.8 x 10.8 x 15.7"

Tank capacity

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

1000 ml
34 fl.oz.

Number of tanks

1–2

1–2

1–2

1–2

1–2

1–2

1–2

1–2

1–2

1–2

Blasting chamber volume

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

10 l
2.64 gal

Weight (empty, 2-tanks)

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

~5,5 kg
~12.1 lbs

Weight (empty, 1-tank)

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs

~4,4 kg
~9.7 lbs
