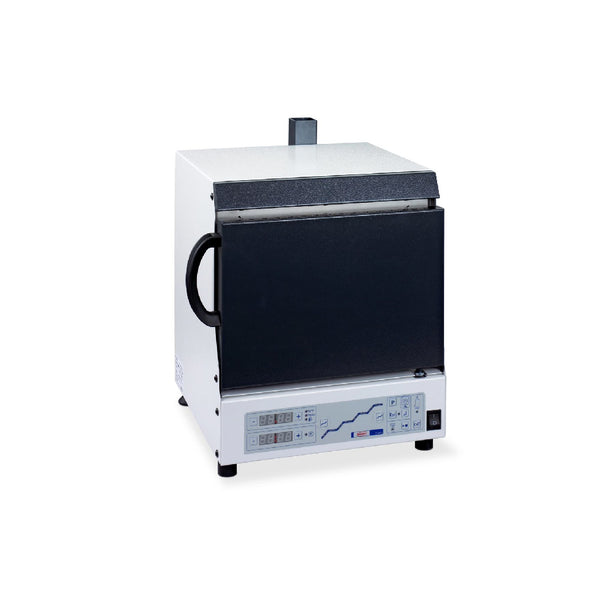

Magma

Preheating furnace

Magma is a preheating furnace with all the technical features, which fulfill all the requirements in terms of programming, handling and ergonomics.]



Advantage

  • Four-sided heating ensures uniform heating in the entire furnace chamber.
  • Quick heat rate: to 900°C (1654°F) in only 60 min.
  • 99 Program storage spaces + 1 Program for speed investments.



Detail

  • The one-piece furnace chamber prevents localized heat loss, which is otherwise caused by joints.
  • Guarantees uniform temperature distribution due to the high density of heating coils in thermally demanding zones.


Technical data

Name

Magma, 220-240 V

Magma for use with catalyst converter, 220–240 V

Article number

23000000

23000500

Permissible mains voltage

220–240 V

220–240 V

Permissible mains frequency

50/60 Hz

50/60 Hz

Power consumption

1900 W

1900 W

Mains input fuse

12 A(T)

12 A(T)

Temperature range

0–1100 °C
30–2010 °F

0–1100 °C
30–2010 °F

Programmable heating rate

0–9 °C/min
0–17 °F/min

0–9 °C/min
0–17 °F/min

Max. heat-up rate in 1 hour

900 °C
1652 °F

900 °C
1652 °F

Number of programmable stage programs

99

99

Number of speed programs

1

1

Volume (Muffle)

3,45 l
0.91 gal

3,45 l
0.91 gal

Type temperature sensor

PtRh-Pt

PtRh-Pt

Dimensions (W x H x D) (incl. one handle and flue)

430 x 500 x 440 mm
16.9 x 19.7 x 19.3"

430 x 500 x 440 mm
16.9 x 19.7 x 19.3"

Dimensions (W x H x D) (incl. one handle and catalyst converter)

430 x 610 x 550 mm
16.9 x 24.0 x 21.7"

430 x 610 x 550 mm
16.9 x 24.0 x 21.7"

Dimensions (W x H x D) (muffle)

160 x 120 x 180 mm
6.3 x 4.7 x 7.1"

160 x 120 x 180 mm
6.3 x 4.7 x 7.1"

Weight (incl. flue)

~30 kg
~66.1 lbs

-

Weight (incl. catalyst converter)

-

~34,8 kg
~76.7 lbs
