Fine detail, generous capacity
34.4 μm pixel size and a 192 × 120 × 190 mm build volume support detailed dental models and efficient batch layouts.
RAYSHAPE · Dental 3D printing

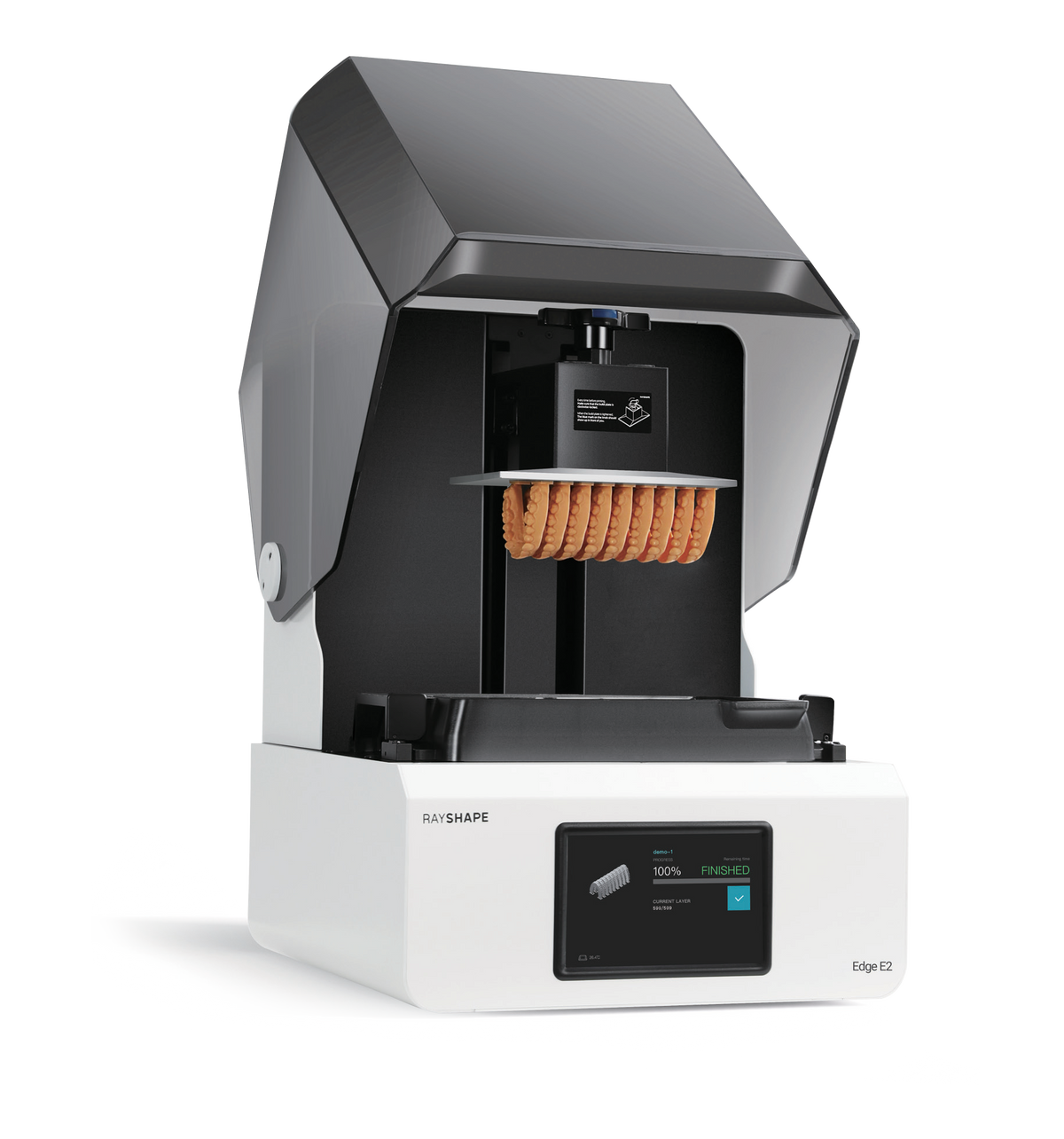

Edge E2
Make your next step into digital dentistry.
A compact 6K LCD dental 3D printer for clinics and laboratories. Build a versatile printing workflow with a generous build area, automatic platform heating and intuitive touchscreen control.
6KLCD34.4 μmPixel size192 × 120 × 190mm
Designed for everyday productivity
Automatic platform heating
An automatically heated build platform supports your resin workflow, with a 7-inch colour touchscreen for straightforward operation.
Connected workflow
USB 2.0, wireless network and Ethernet connectivity, with ShapePanel slicing and LAN task delivery.
One printer. Multiple dental workflows.

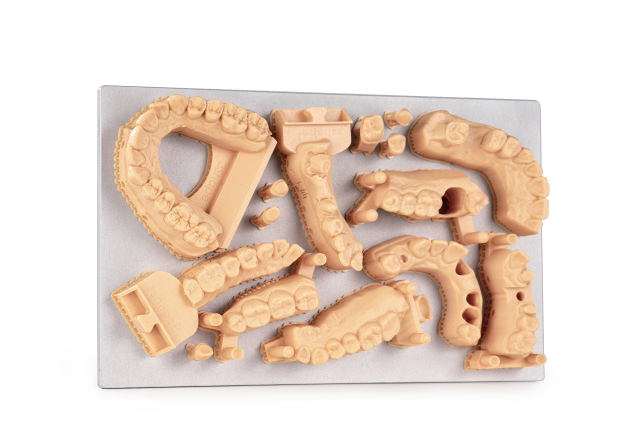

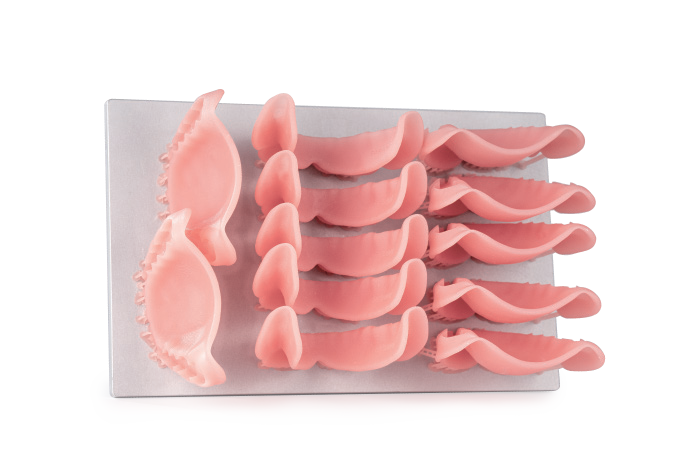

Explore models, surgical guides and denture workflows. Select the appropriate resin and validated workflow for each application.
More dental applications
Splints, gingiva, try-ins, custom trays, record models, casting, temporary restorations and indirect bonding trays. Applications depend on suitable materials and validated processing.
Technical specifications
| Build volume | 192 × 120 × 190 mm |
|---|---|
| Pixel size | 34.4 μm |
| Printing technology | LCD |
| LCD screen | 9.25-inch 6K monochrome |
| Resolution | 5760 × 3600 pixels |
| Light source | 405 nm LED |
| Dynamic layer thickness | 0.05–0.15 mm |
| Printing speed | Up to 85 mm/hour |
| Heating module | Automatic build-platform heating |
| Touchscreen | 7-inch colour touchscreen |
| Connectivity | USB 2.0 / Wireless / Ethernet |
| Rated power | 350 W |
| Power input | 100–120 VAC, 4 A / 200–240 VAC, 2 A; 50/60 Hz |
| Control system | Master.OS |
| Slicing software | ShapePanel |
| Software operating system | Windows 7 / 8 / 10 / 11 |
| Languages | English / Chinese |
| Import formats | STL / OBJ |
| Export formats | RS / SHAPE |
| Available materials | ShapeMaterials Dental Series |
| Device dimensions | 390 × 420 × 550 mm |
| Net weight | 31 kg |
| Package dimensions | 540 × 540 × 900 mm |
| Package weight | 45 kg |
Printing speed depends on resin type and slicer settings. Door-open print pause is optional.
Build your workflow with DDA
Talk to Dental Dynamics Australia about resin selection, post-processing and the support options available for your clinic or laboratory.
Request a quote
