Silent compact

Price
$0.00
In stock! Usually ships within 24 hours.

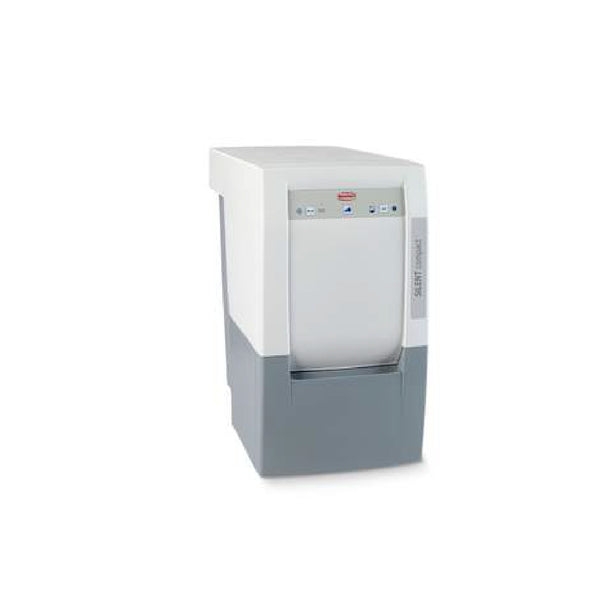

SILENT compact

Single workbench extraction

Compact, dustbag-free suction with automatic filter cleaning and durable collector motor.


Advantage

  • No follow-up costs due to bag-free dust collection.
  • Low operating noise of max. 55 dB (A).
  • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed)

Detail

  • Comfortable operation of the switch-on function through key combination.
  • Working without interruption due to uncomplicated motor change within minutes.



Ordering information





Technical data

Name

SILENT compact, 220-240 V

SILENT compact, 120 V

SILENT compact, 100 V

Article number

29340000

29341000

29341500

Permissible mains voltage

220–240 V

120 V

100 V

Permissible mains frequency

50/60 Hz

50/60 Hz

50/60 Hz

Nominal voltage

230 V

120 V

100 V

Power consumption

490 W (230 V)

480 W (120 V)

480 W (100 V)

Volume flow (max.)

2500 l/min (230 V)
1.47 ft³/s (230 V)

2500 l/min (120 V)
1.47 ft³/s (120 V)

2500 l/min (100 V)
1.47 ft³/s (100 V)

Max. depression

219 hPa
3.2 psi

219 hPa
3.2 psi

219 hPa
3.2 psi

Motor technology

Collector

Collector

Collector

Filter technology

Bag- free

Bag- free

Bag- free

Filter quality

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Max. permitted connected load of the plug-in socket

1350 W (230 V)

480 W (120 V)

320 W (100 V)

Mains input fuse

8 A

8 A

8 A

Number of suction hoses

1

1

1

Sound pressure level (LpA) (at max. volume flow)

55 dB(A)

55 dB(A)

55 dB(A)

Weight (empty)

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

Dimensions (W x H x D)

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

Ø suction fittings interior

35 mm
1.38 "

35 mm
1.38 "

35 mm
1.38 "

Ø suction fittings exterior

40 mm
1.57 "

40 mm
1.57 "

40 mm
1.57 "

Fill level dust collector

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal
