The M AI° is equipped with a DC 1.37-kilowatt spindle

from high-quality spindle manufacturer SycoTec of Germany.

M AI° is equipped with a 1.37kW DC-type spindle from the renowned German spindle manufacturer, SycoTec. Compared to AC spindles, DC-type spindles offer several advantages, including precise speed and torque control, fast response times, and exceptional durability. In particular, they provide stable control at low speeds, making them an essential component for small-scale equipment and applications requiring precision control. The 1.37kW DC spindle in M AI° delivers higher torque output than equivalent AC-type spindles, achieving performance comparable to that of a 2.2kW AC-type spindle.

X, Y, Z Axis (Linear Motion) - C5 Class Ball Screw Applied

The higher the precision grade of a ball screw, the more accurately it can position the target. While C7 class ball screws are commonly used, M AI° is equipped with a higher-grade C5 class ball screw for superior precision.

A, B Axis (Rotary Motion) - Harmonic Drive Applied

A high-precision gear system that eliminates backlash when gears engage, providing excellent reduction capability and high torque transmission efficiency.

M AI° is designed to spray cutting fluid toward the tool's blade from four directions.

This meticulous design minimizes the time during the milling process

when the cutting fluid does not contact the tool's blade, ensuring stable machining operations.

The user interface (UI) of M AI° is designed to be intuitive and easy to understand.

The user-friendly design not only allows novice users who are unfamiliar with the equipment to easily control it,

but also enables seamless interaction between the equipment and the user, streamlining operations and maximizing efficiency and convenience.

90-degree Milling

The jig of M AI° is designed to ensure various machining directions,

allowing machining from multiple angles to minimize undercuts.

M AI°'s Full Closed Loop Control system enables precise control even when each axis moves freely in multiple directions, making it easy to perform complex machining tasks using highly versatile accessories.

C-Clamp Jigs

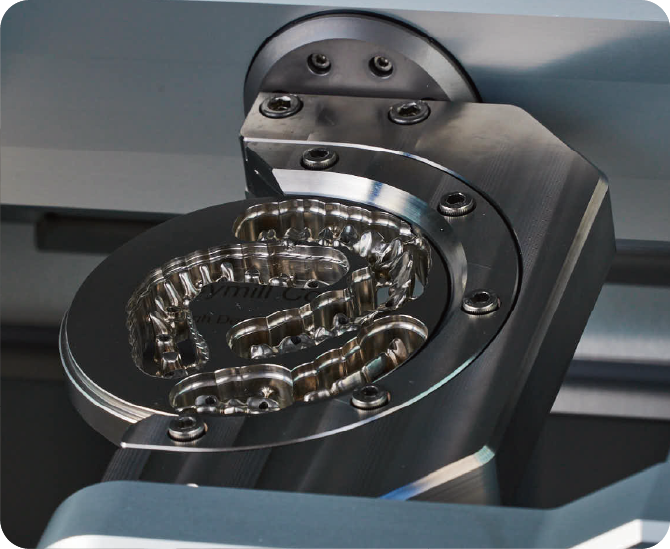

Φ98.5mm Disk

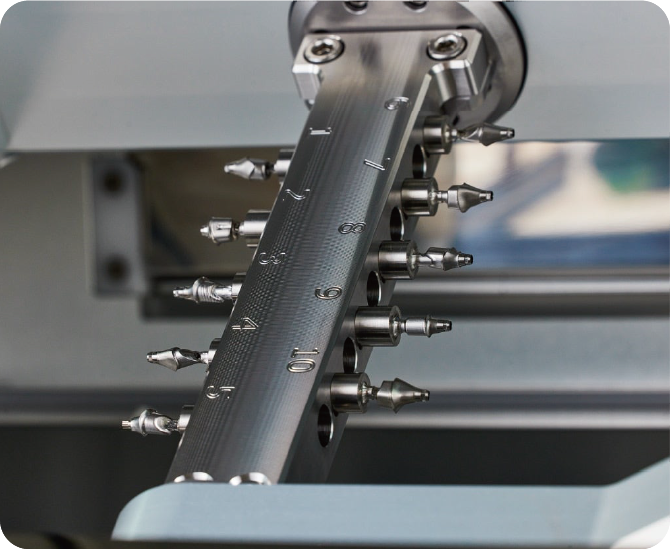

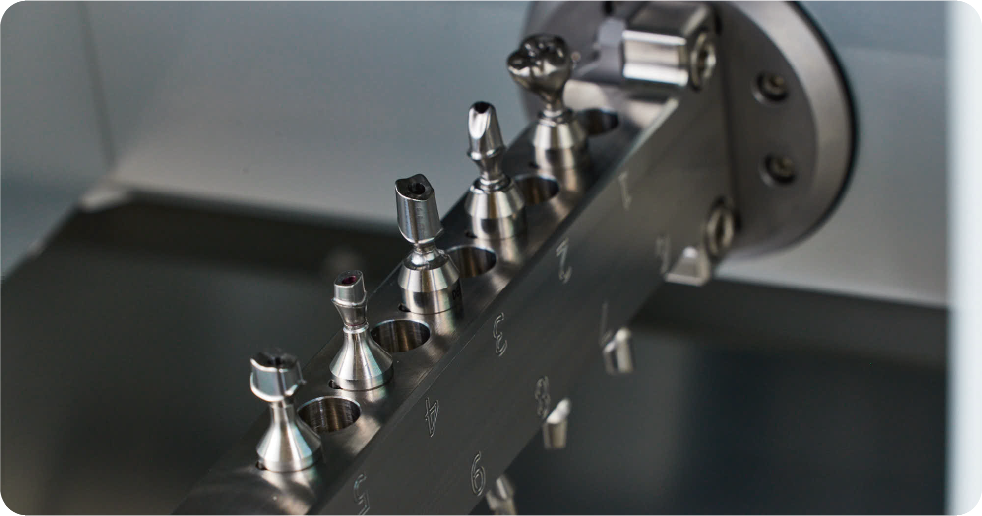

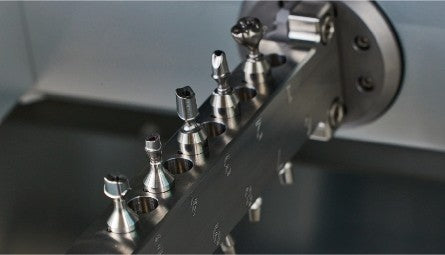

Premill Jigs
#10 Slots (5-Axis Machining)

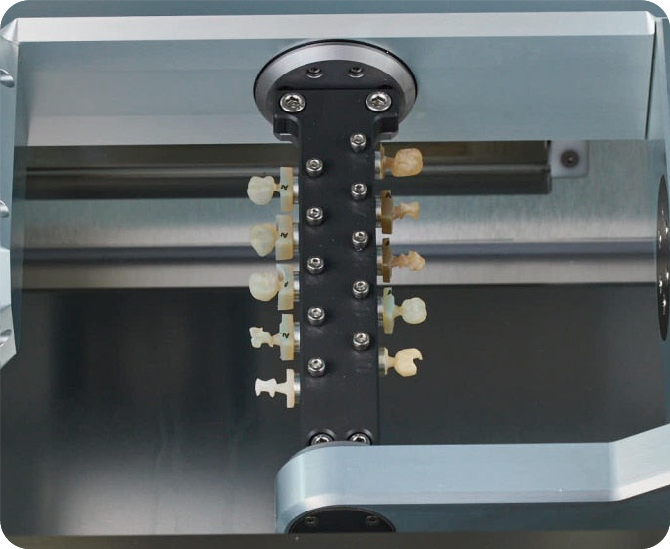

Block Jigs
#10 Slots (5-Axis Machining)



Spec.

Milling Methods		Combined dry/wet
Size (W x D x H)	Machine	607 x 768 x 910mm / 23.90 x 30.23 x 35.43 inch
	Table	607 x 768 x 790mm / 23.90 x 30.23 x 31.10 inch
Weight	Machine	135kg / 297.62 lb
	Table	70kg / 154.32 lb (80~90kg with full option included)
Spins	Capacity	DC 1.37kw
	Max. rotation	60,000 RPM
	Ave. Torque	20,1 Ncm (S1, IEC 60034-1)
Drive Axis		Simultaneous 5 Axis
Motor		400W Servomotor (all 5 axis)
Axis Drive Control		100% Full Closed loop Drive Control System
Axis Drive Unit	X / Y / Z axis	C5 Class Ballscrew & LM Guide
	A / B axis	Harmonic drive
Axis Drive Range	X / Y / Z axis	200mm / 256mm / 130mm
	A / B axis	+35° to -35° / 360° (Free rotation)

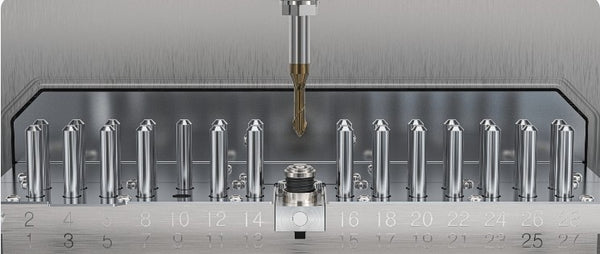

Tool Pockets		28 types
Monitor		13.3" LCD Touch Monitor



AI Calibration

AI Calibration is fully automated, and its user interface is intuitively designed,
allowing even first-time users to operate it with ease.

The AI Calibration introduced through M AI° minimizes errors, both large and small,
that may occur throughout the machining process, ensuring consistent and precise machining, and providing users with stable and efficient production competitiveness.
