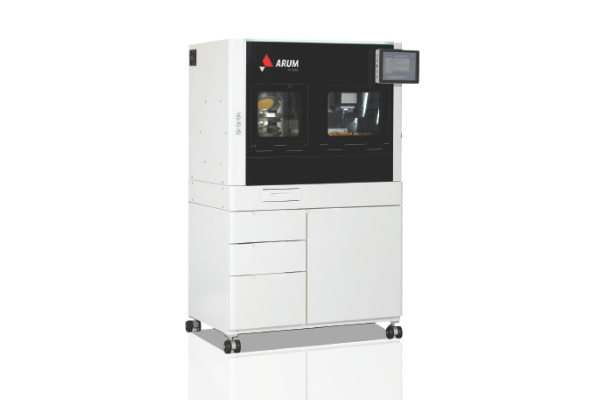

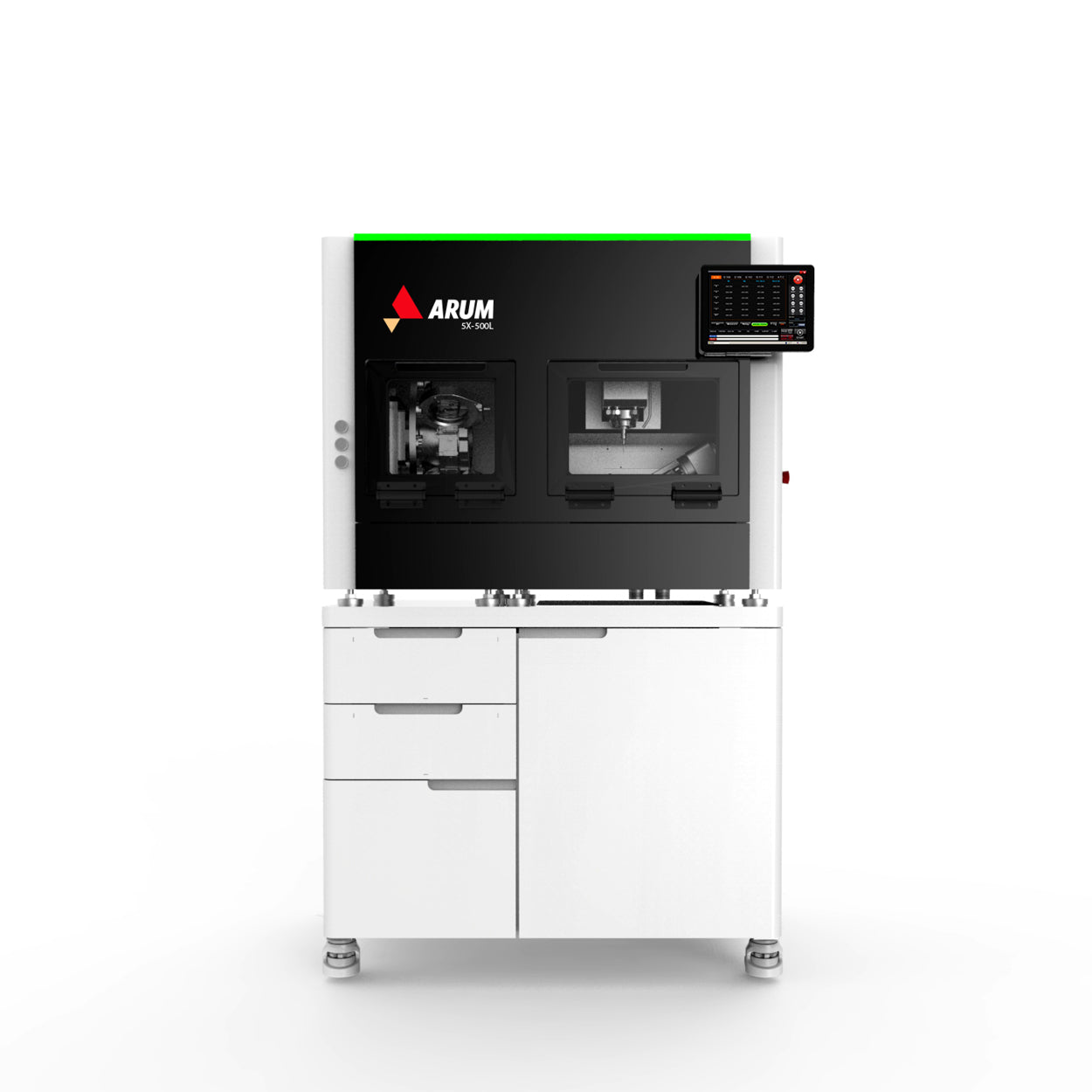

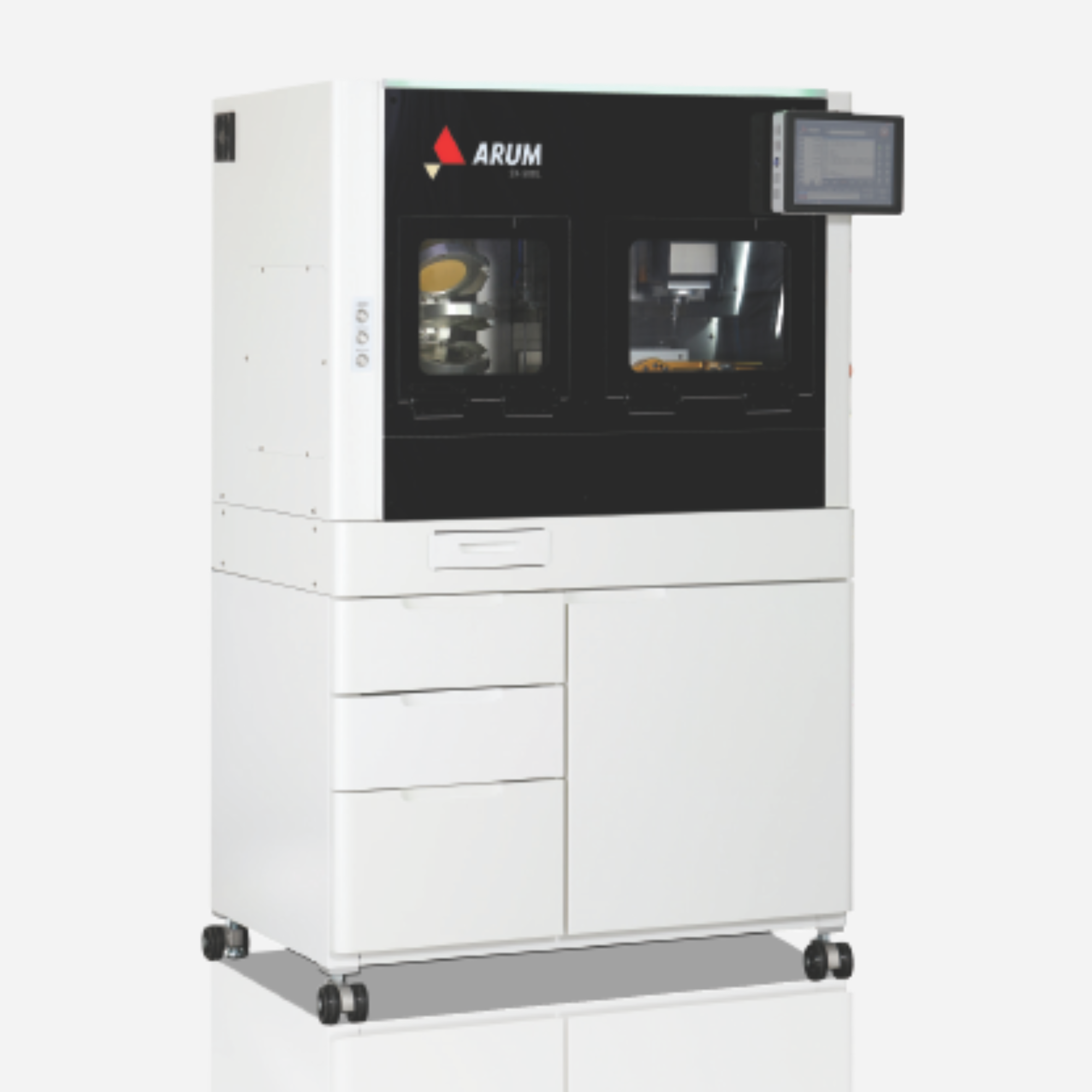

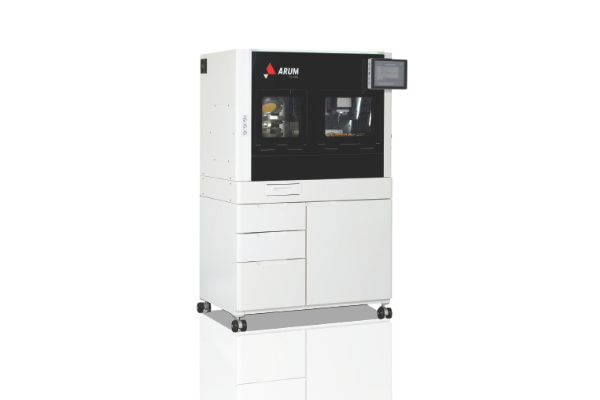

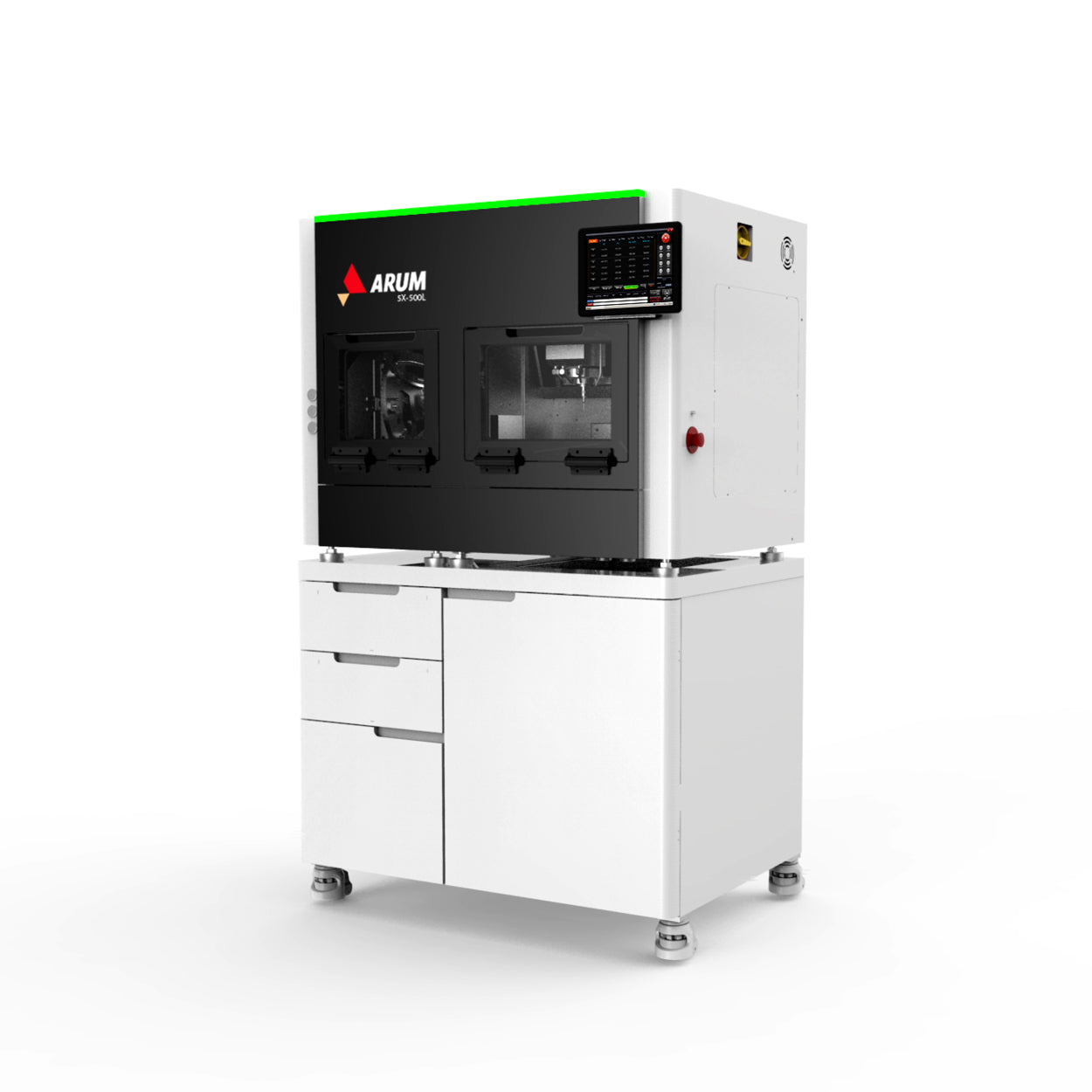

Continue ShoppingArum 5-Axis Wet & Dry Milling (5X-500L)
*This price is including 5X-500L, Built-in PC, Dust Extractor, and CAM Software (Hyperdent).
ARUM Milling Machines by ARUM DENTISTRY
Arum is a brand name of milling machines of DOOWON in Korea. Doowon has been the fastest-growing company in the world.
Doowon has technologies to make strong milling machines for all materials including metal disks and pre-milled blanks with powerful spindle and strong frame.
Product Summary - 5X-500L
- Application Jig Replacement 24 hour operation
- The best-in-class spindle AC 2.2kw
- Zero Point System
- Wireless Auto Calibration

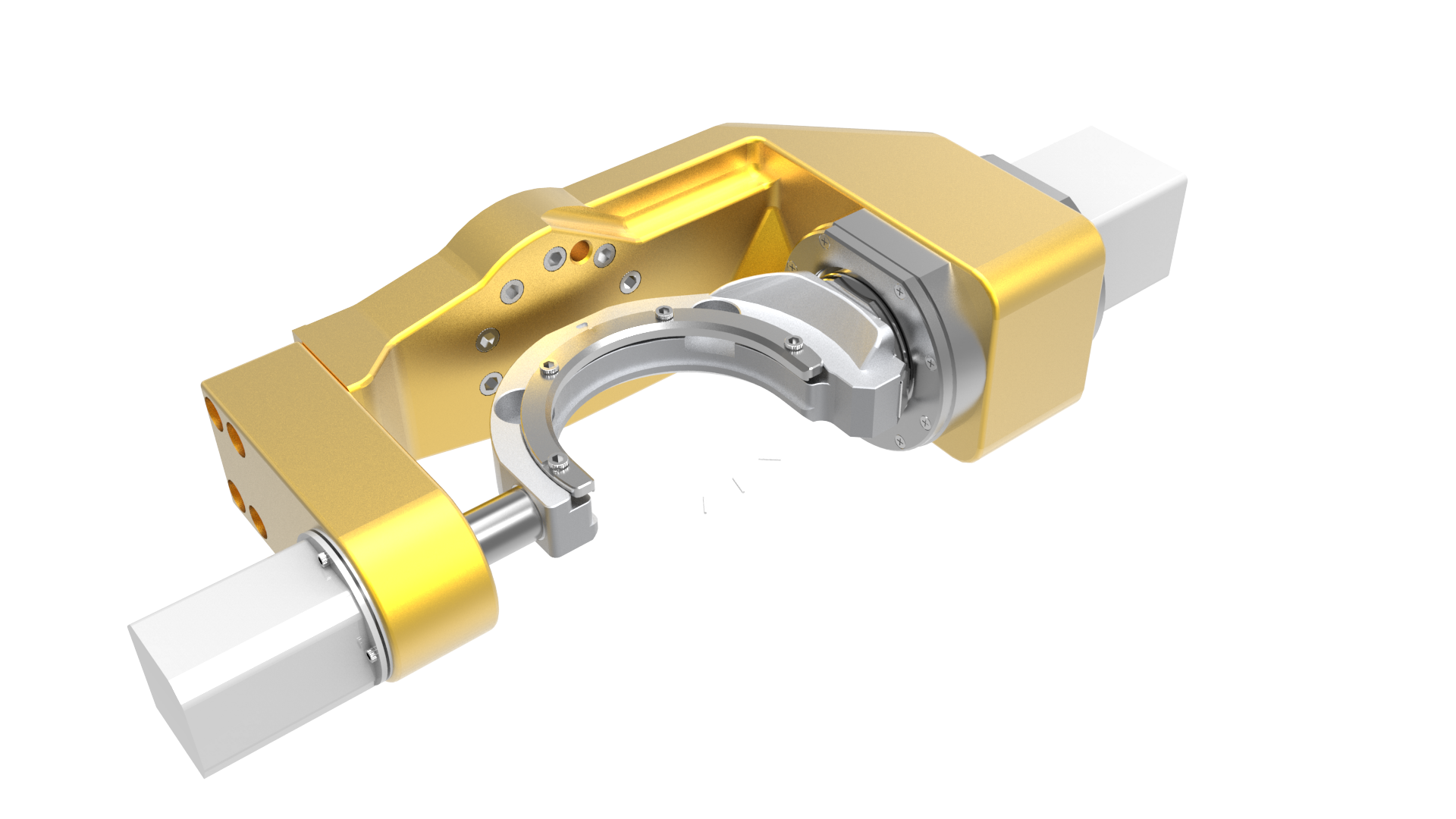

- Open C-type jig
What 5X-500L can mill?
Implant Bar, Screw-Retained Bridge (Crown & Coping), Customized Abutment, Hybrid Abutment, Inlay & Onlay, Crown & Coping, Crown & Coping Bridge, Model, Bite Splint, Denture
What material it can mill?
Pre-milled Blank, Co-Cr & Ni-Cr Disk, Titanium Disk, Lithium Disilicate, Nanocomposite, Zirconia, PMMA, PEEK, Wax
Product Features

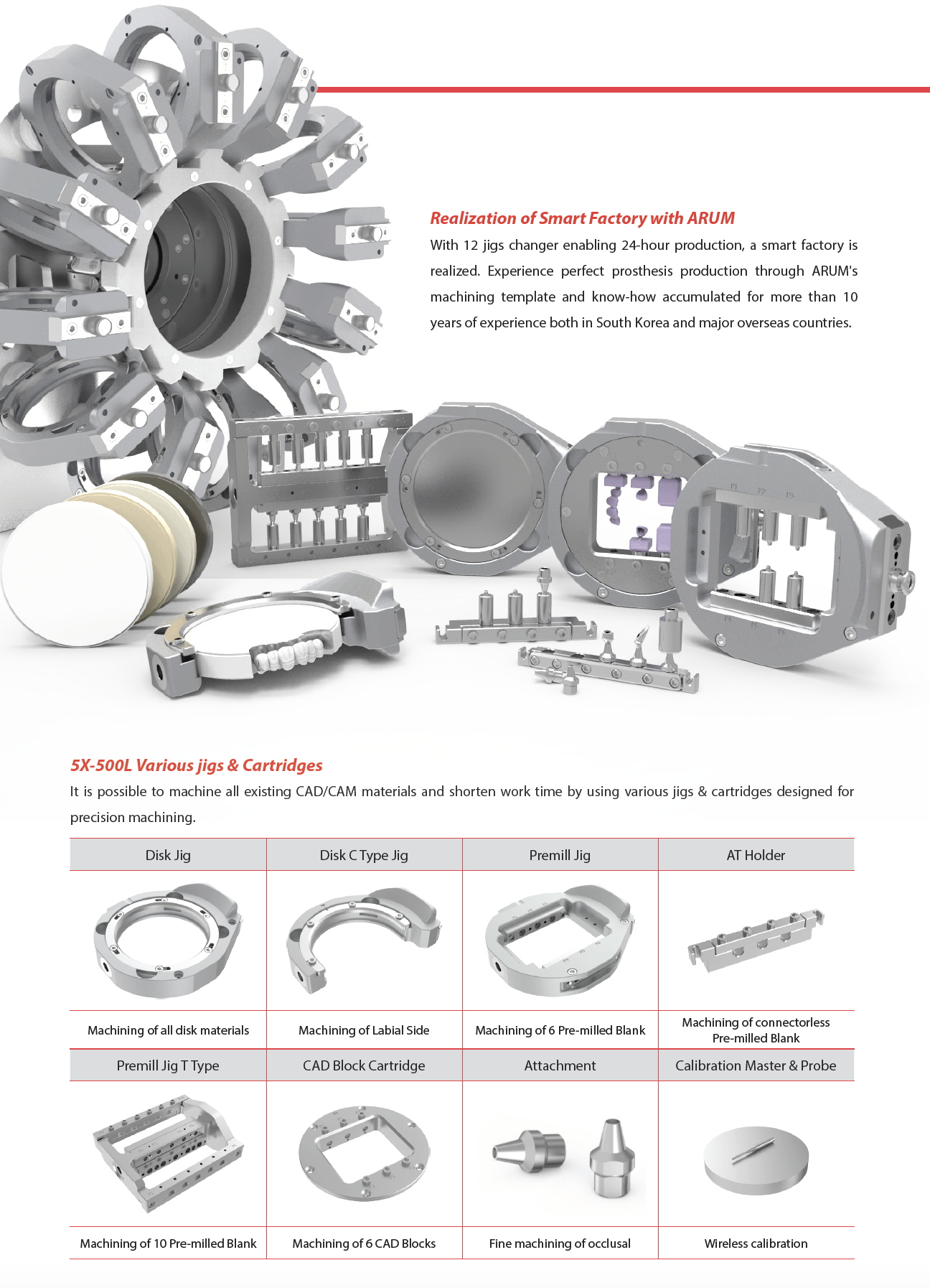

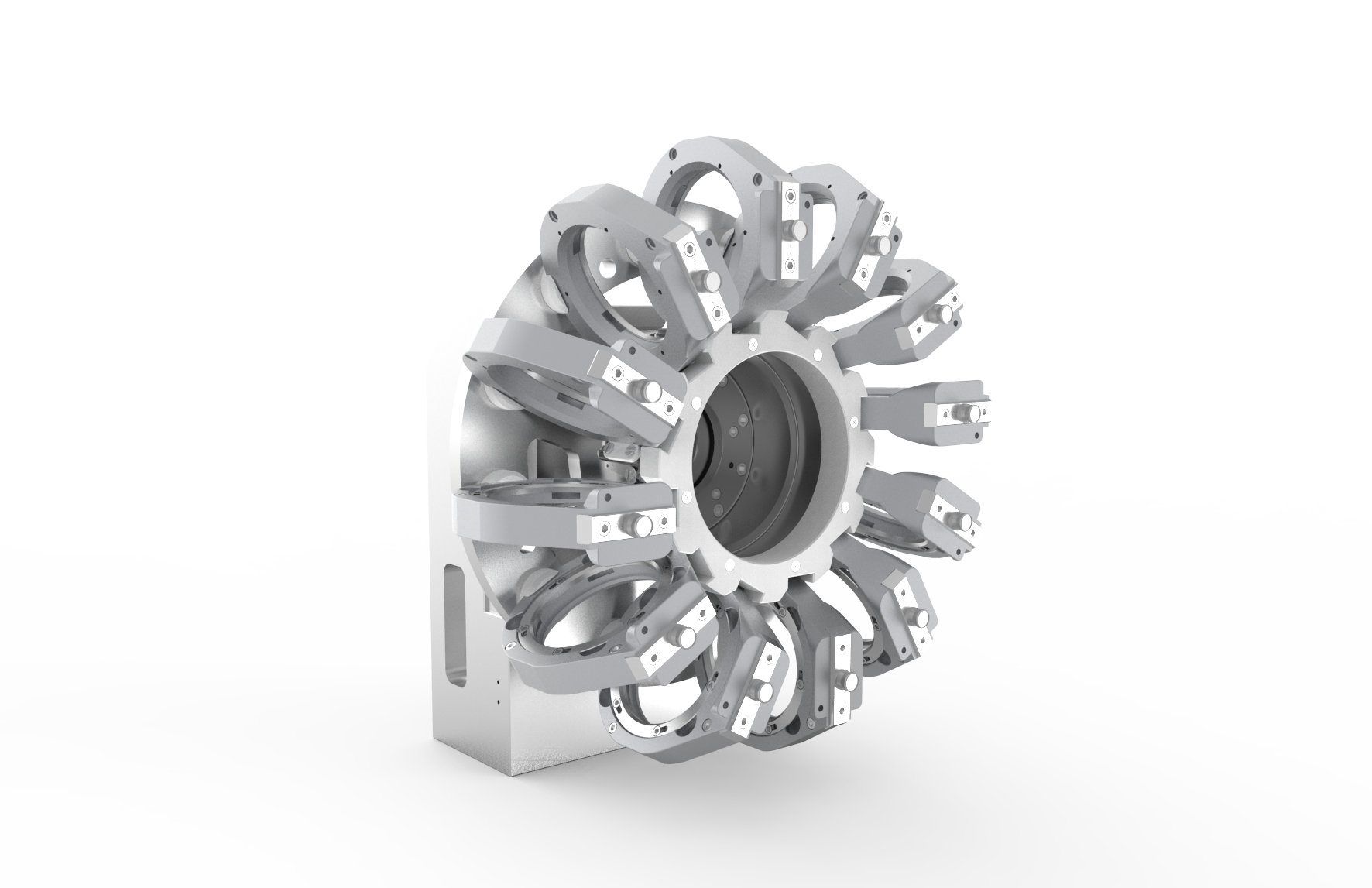

01. Realization of Smart Factory with ARUM
With 12 jigs changer enabling 24-hour production, a smart factory is realized. Experience perfect prosthesis production through ARUM's machining template and know-how accumulated for more than 10 years of experience both in South Korea and major overseas countries.

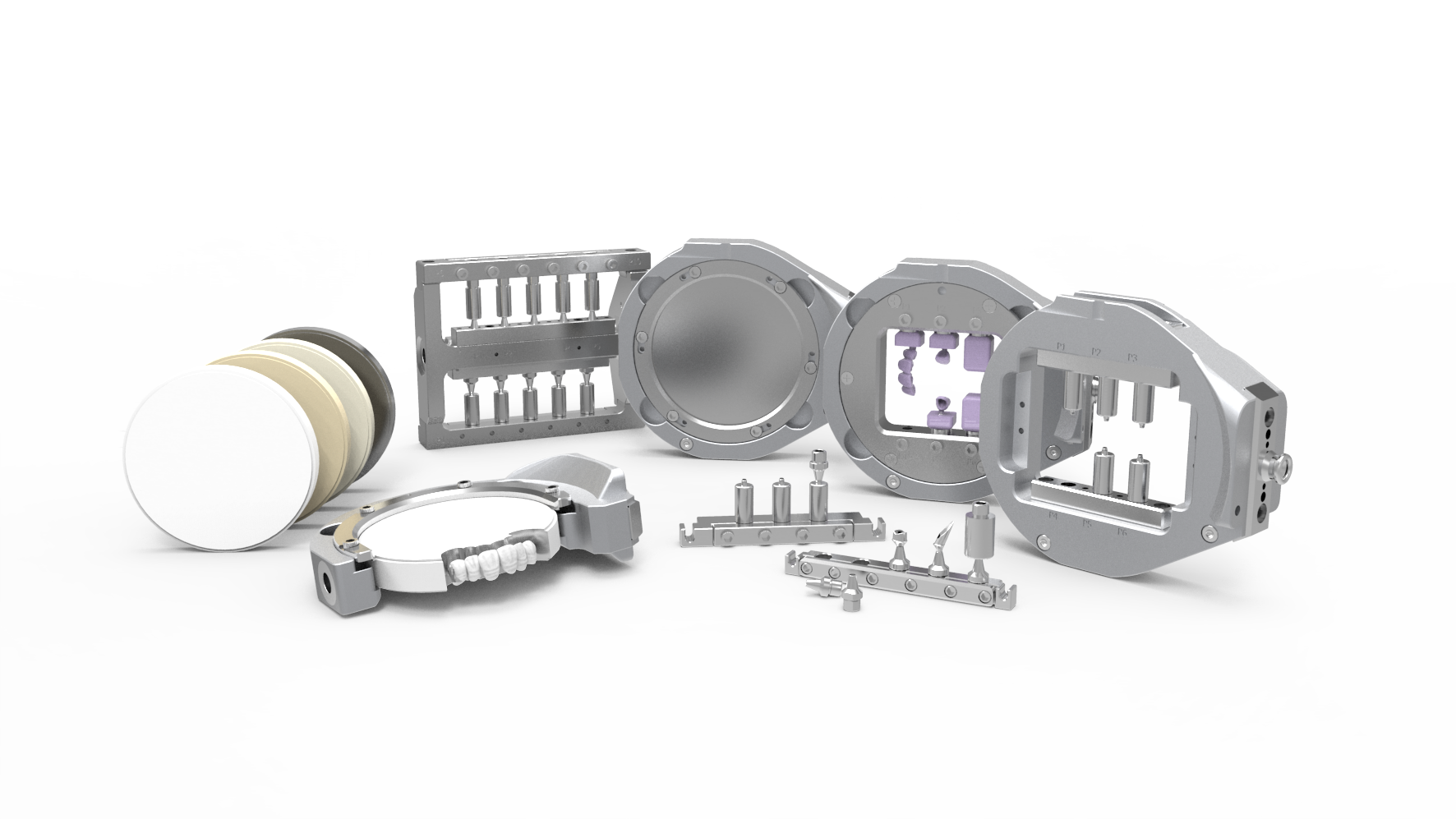

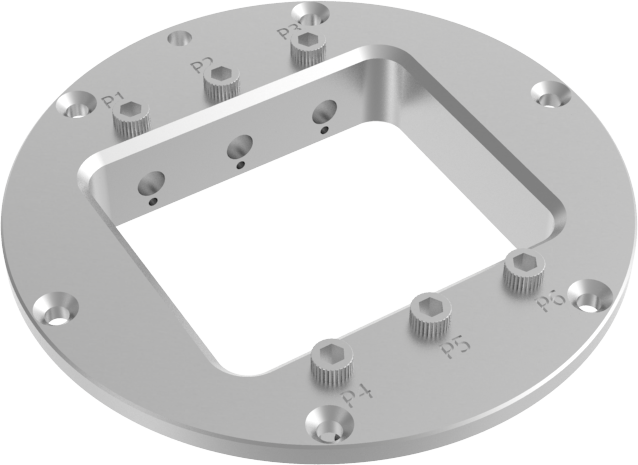

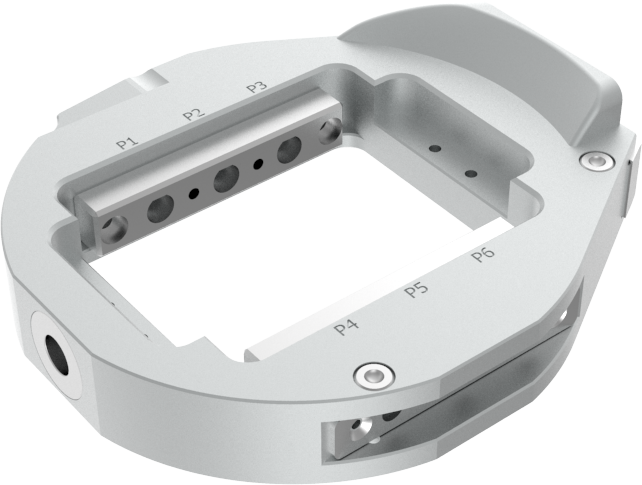

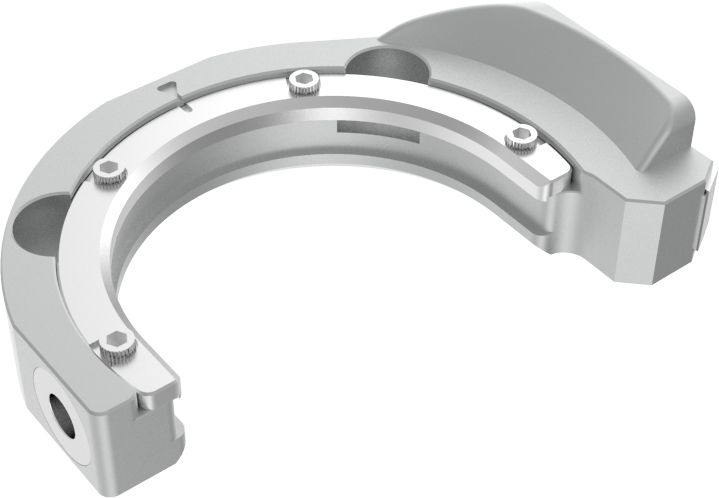

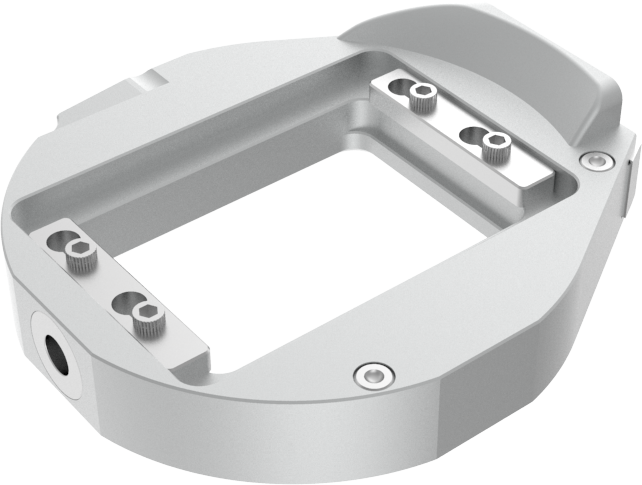

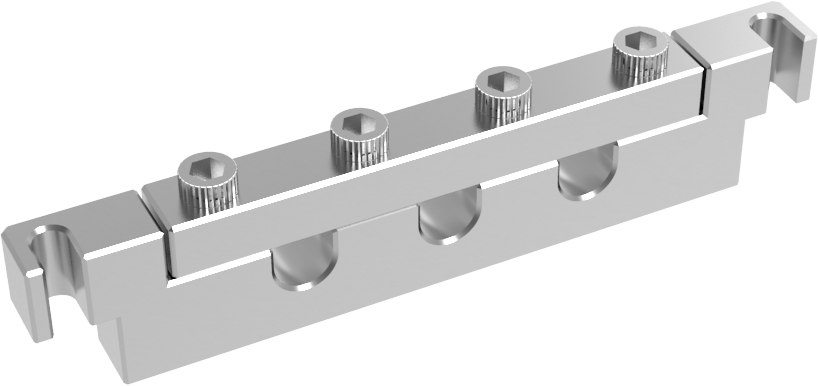

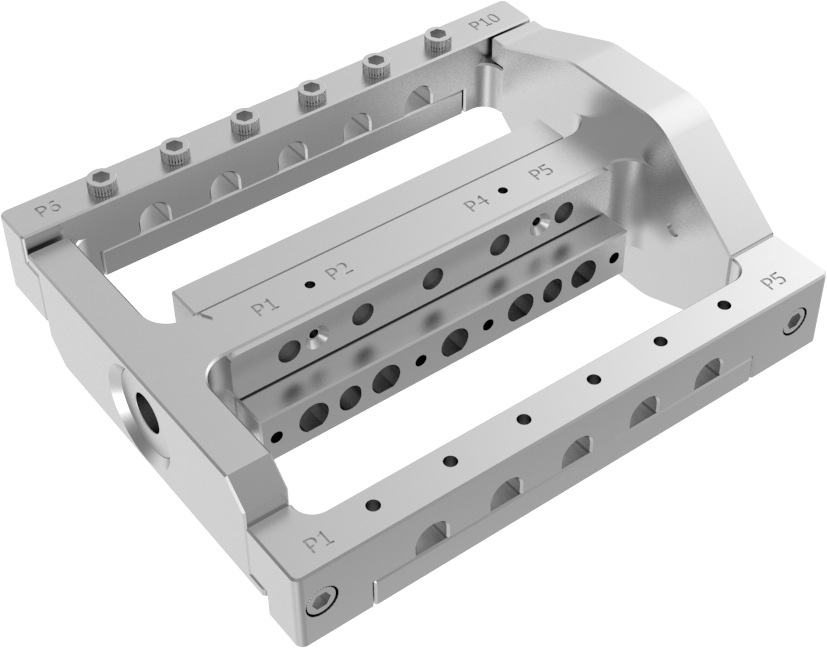

02. 5X-500L Various jigs & Cartridges
It is possible to machine all existing CAD/CAM materials and shorten work time by using various jigs & cartridges designed for precision machining.
03. Application of the spindle with the best-in-class specifications
It is equipped with a powerful spindle made by Sycotec in Germany. With a powerful performance, it can machine not only METAL but also all CAD/CAM materials used in the dental industry.
04. Outstanding durability and precision
The application of Servo Motor built-in Absolute Encoder to ensure excellent zero-point precision. The application of auxiliary support compensates even small vibrations, enabling high-precision machining.
05. Wireless Auto Calibration function
The use of wireless probes enables auto-calibration in a safe and easy manner. In particular, it can produce Customized abutment with high accuracy through the auto-calibration function for each position of the pre-milled blank.
06. Auto tool changer for 20 tools
With 20 tools in the magazine, it is possible to set up dedicated tools for machining various materials and prostheses at once. It also measures the degree of tool wear and informs the user of the time for tool replacement.

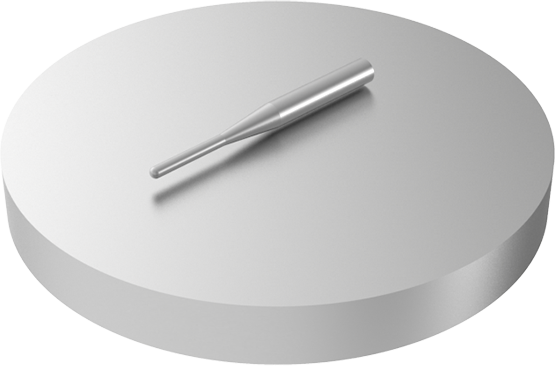

07. Just about any material can be milled
Titanium Disk, Co-Cr Disk, Ni-Cr Disk, Pre-Milled Blank (Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc
Materials & Applications Info.
Materials | Applications | |||
Pre-milled Blank (Titanium) | ◎(10ea) | Implant Bar | ◎ | |
Co-Cr & Ni-Cr Disk | ◎ | Screw-Retained Bridge (Crown & Coping) | ◎ | |
Titanium Disk | ◎ | Customized Abutment | ◎ | |
Lithium Disilicate | O | Hybrid Abutment | ◎ | |
Nanocomposite | ◎ | Inlay & Onlay | ◎ | |
Zirconia | ◎ | Crown & Coping | ◎ | |
PMMA | ◎ | Crown & Coping Bridge | ◎ | |
PEEK | ◎ | Model | ◎ | |
Wax | ◎ | Bite Splint | ◎ | |
Denture | O |
Specifications
Model | 5X-500L | |
Axis | 5 | |
Processing | Wet and Dry | |
Spidle | AC 2.2 kw | |
Clamping System | Zero Point | |
Number of Jig | 12 | |
Tool Shank (mm) | 6 | |
Motor | Servo | |
A.T.C | 20 | |
Loader | O |
