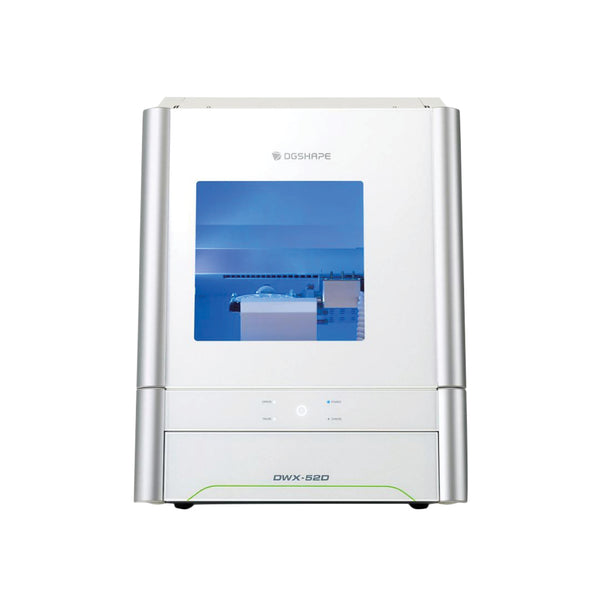

DWX-52D

Price
$30,674.00
In stock! Usually ships within 24 hours.

 Features and Benefits

Snap-In Clamp System
The new Snap-In Clamp System gives users:
- A faster and more secure disc set-up
- Indexing features to optimize two-stage processing
- Multi-device adapter integration for a convenient and scalable solution


 Increased Milling Capabilities
The DWX-52D provides continuous milling with a 15-station Automatic Tool Changer (ATC) and auto-adjusted air pressure that automatically switches to the right air volume in response to the CAM software material data.


VPanel with Intelligent Tool Changer (ITC)
Intuitive software streamlines operation with one-touch calibration, machine diagnostics, multi-device control, and an intelligent tool changing function that automatically swaps out used burs for a continuous workflow.


Efficient Job Management

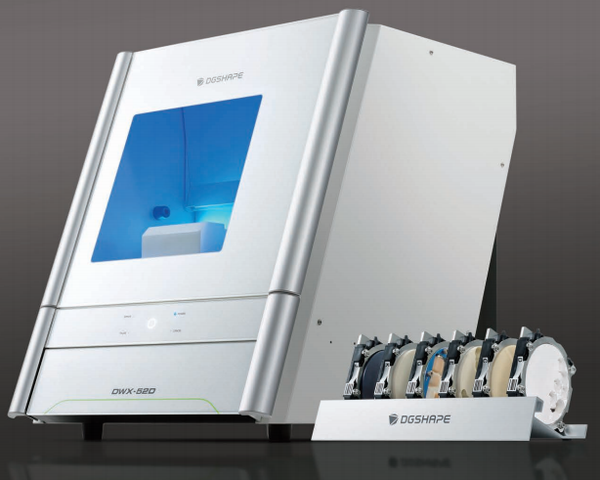

The DWX-52D includes six-adapters for 98.5mm material discs as standard. These adaptors combine with an included adapter rack to cue-up multiple milling jobs for tidy and efficient job management.



Material

Cuttable material:Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, CoCr sinter metal



Specifications

CUTTABLE MATERIAL

Zirconia, Wax, PMMA, Composite Resin, PEEK, Gypsum, Fiber Reinforced Resin, CoCr Sinter Metal

LOADABLE WORKPIECE WEIGHT

Up to 850g

LOADABLE WORKPIEVE SHAPE

Diameter 98.5, step height 10mm, Pin diameter 6mm

LOADABLE BUR

Shank Diameter 4 mm; length 40-55 mm

TOOL HOUSINGS

15

OPERATING SPEED

1,800 mm/min (XYZ)

SPINDLE SPEED

30,000 RPM

ROTARY AXIS TRAVEL ANGLE

A: ±360°, B: ±30°

DISC MATERIAL SIZE

98mm with 10mm Step

NUMBER OF BURS

15 bur housings

COMPATIBLE COMPRESSED AIR

0.02 – 0.2 Mpa

INTERFACE

USB (10/100 Base T automatic switching)

CONTROL COMMAND SET

RML-1, NC Code

POWER REQUIREMENTS

AC 100 to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC 60664-1)

POWER CONSUMPTION

200 W

OPERATING NOISE

Operation 70 dB (A), Standby (45 dB (A)ess

EXTERNAL DIMENSIONS

482 x 560 x 600 mm (width, depth, height)

WEIGHT

67 kg

INSTALLATION ENVIRONMENT

Altitude up to 2,000 m, Temperature 5 to 40° C (41 to 104° F), Humidity 35 to 80% (no condensation), Ambient Pollution Degree: 2 (as specified by IEC 60664-1), Short-Term Temporary Overvoltage: 1,440 V, Long-Term Temporary Overvoltage: 490 V

INCLUDED ITEMS

Power cord, USB cable, Manuals, DGSHAPE Software Package CD, Detection pin, Automatic correction jig, Material Adapters, Material Adapter Rack, Pin-type material adapter, Hexagonal driver, Spanner (for spindle), Milling bur holders, Milling bur positioner, Cleaning tool, optional adapter ID labels, Dust collection hoses, Dust collection hose adapter, Regulator, Cleaning brush
