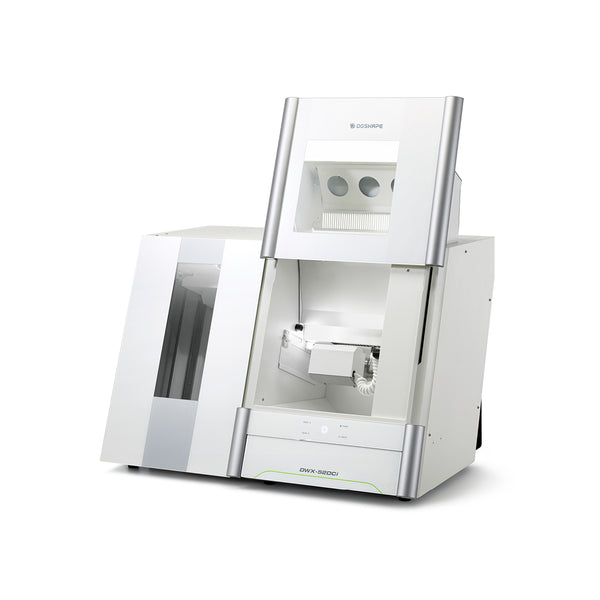

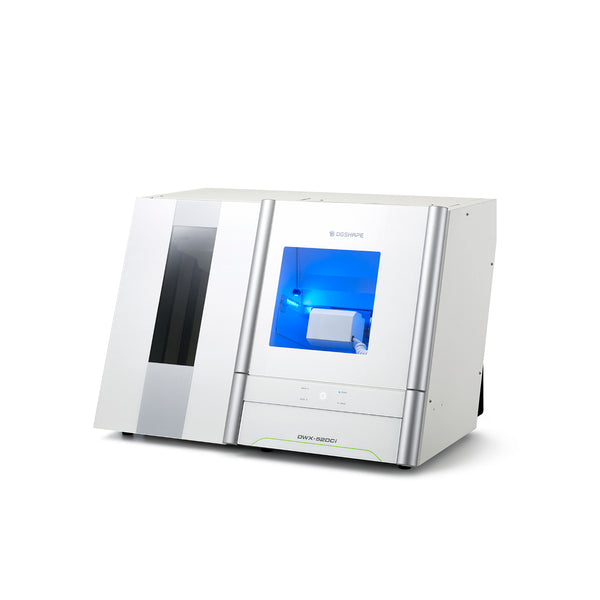

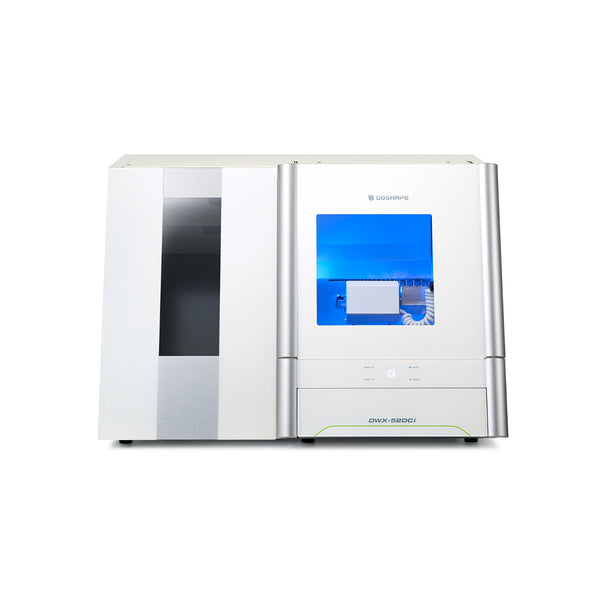

DWX-52DCi

Price
$38,224.00
In stock! Usually ships within 24 hours.




Features and Benefits

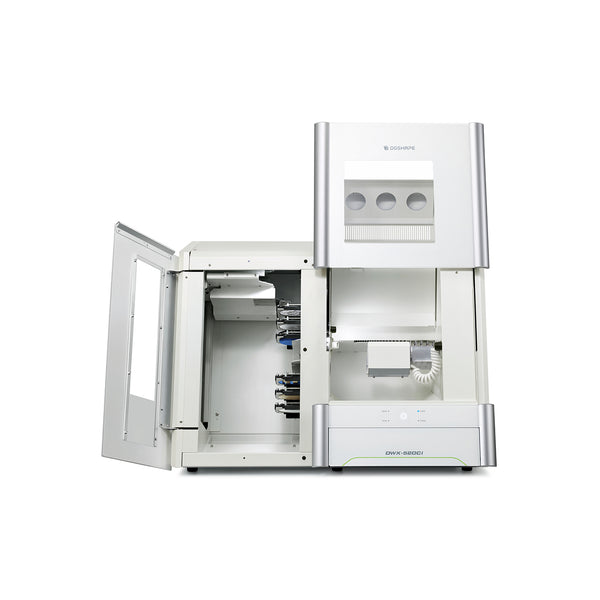

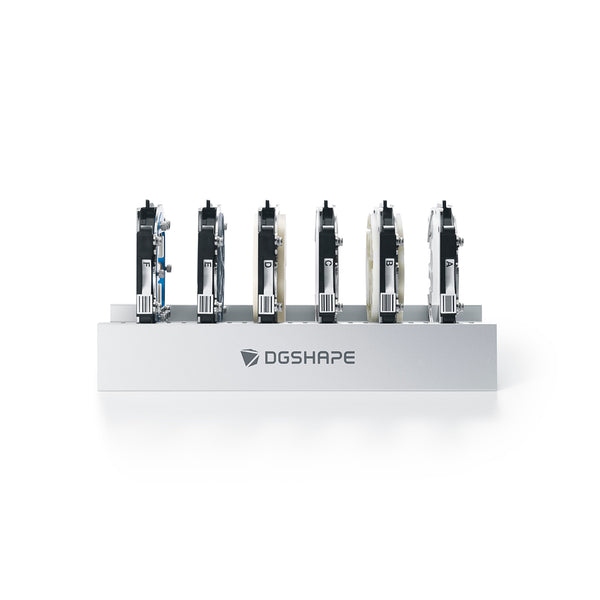

●Automatic Disc Changer (ADC)

Load the six material adapters with different shades of zirconia or any combination of material discs to suit your needs. Assign them with milling jobs and let the automatic disc changer do the rest.

The adapter system enables multi-device adapter integration. The same material adapters can be milled on both the DWX-52DCi and DWX-52D for a convenient and scalable milling solution.

●Automatic Tool Changer (ATC)
Load the 15-station ATC with a variety of diamond coated, carbide and DGSHAPE by Roland hybrid tools to continuously mill jobs in different materials and multiple shades of zirconia without stopping production.

●Intelligent Tool Control
Part of the simplified VPanel operation, an Intelligent Tool Control (ITC) function automatically swaps out tools that have reached their user-defined lifespan with a designated "partner tool" without needing to pause production.

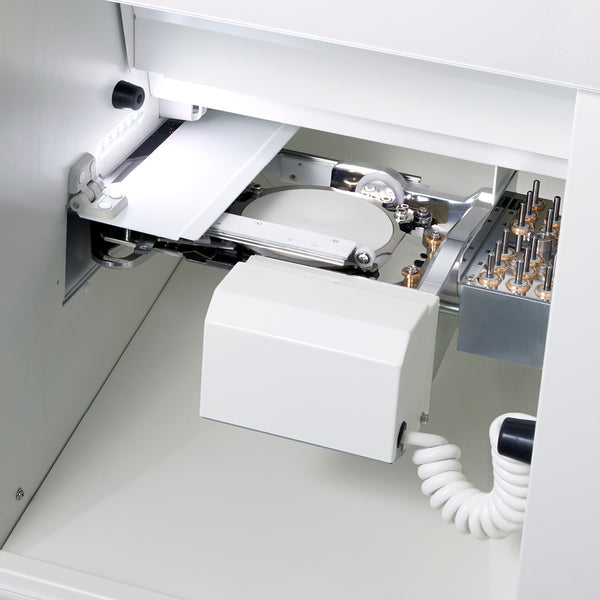

●5-Axis Milling
A smooth and steady ball screw-driven system provides superior milling results—simultaneously rotating and tilting discs for deep undercuts and also milling large arch restorations and other full-mouth prosthetics.

●Automatic Air Pressure Control
An automated regulator eliminates the need for manual air control adjustments by changing air volume based on material data via the CAM software.

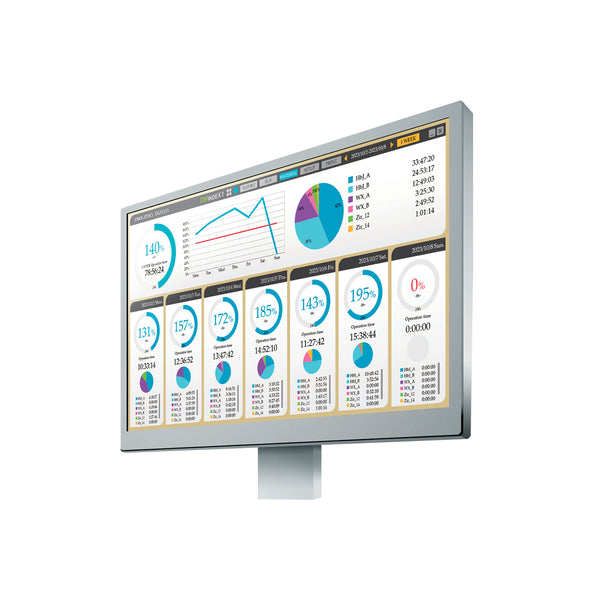

●Intuitive Software for Added Milling Control
The DWX-52DCi features new DWINDEX software that enables users to plan, identify and manage indexing operations to assert improved control over the machine productivity. It offers data accumulation and analyzation for the following key features:

- Operation time per tool
- Operation time per disk
- Operation time of the unit (day/week/month)
- Error Log
- History of materials used
- History of deliverables

●User Replaceable Spindle
The DWX-52DCi features a spindle that can be replaced in a matter of minutes, without needing to call out a technician. No special tools, testing or training is required.

●Applications
- Crowns
- Bridges
- Veneers
- Inlays and Onlays
- Copings
- Abutments
- Expanded Applications



Material
Cuttable material: Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, CoCr sinter metal.



Specifications

Cuttable material Zirconia, Wax, PMMA, Composite resin,
PEEK, Gypsum, glass fiber reinforced resin,
Chrome Cobalt sintered metal
Loadable workpiece shape Step section : 98.5 mm (diameter), height 10mm
Body section : 95 mm (diameter), height max 35mm
Pin diameter : Pin diameter: 6 mm
Loadable workpiece weight Up to 1.87 lbs (850 g)
Number of adapters housed 6
Operating speed XYZ axis: 6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motor Brushless DC Motor
Spindle speed 6,000 to 30,000 rpm
Rotary axis travel angle A: ±360°, B: ±30°
Number of burs housed 15
Attachable bur Shank 4 mm (diameter), 40-55 mm (length)
Compatible compressed air 0.2 MPa
Interface USB
Control command set RML-1, NC code
Power requirements AC 100 VAC ±10%, 50/60 Hz (overvoltage category II, IEC60664-1), 2.0 A
Power consumption Approximately 200 W
Operating noise During operation : 70 dB(A) or less (when not cutting), During standby: 45 dB(A) or less
External dimensions Width x Depth x Height: 34.6 in. x 26.0 in. x 23.6 in. (880 mm x 660 mm x 600 mm)
Weight 231.5 lbs. (105 kg)
Installation environment Indoor use,
Altitude: Up to 6,562 ft. (2,000m),
Temperature: 41 to 104 °F (5 to 40°C),
Humidity: 35 to 80% (no condensation),
Ambient pollution degree: 2 (as specified by IEC 60664-1),
Short-term temporary overvoltage: 1,440 V,
Long-term temporary overvoltage: 490 V
Included items Power cord, power plug adapter,
USB cable, setup guide,
user manual, VPanel,
Roland DG software package CD,
detection pin, automatic correction jig,
pin-type material adapter,
hexagonal screwdriver,
wrench, milling bur holders,
milling bur positioner,
dust collection hoses,
dust collection hose adapter,
regulator, cleaning tool,
optional adapter ID labels,
material adapters,
disc adapter rack,
DWINDEX reporting software, brush
Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
