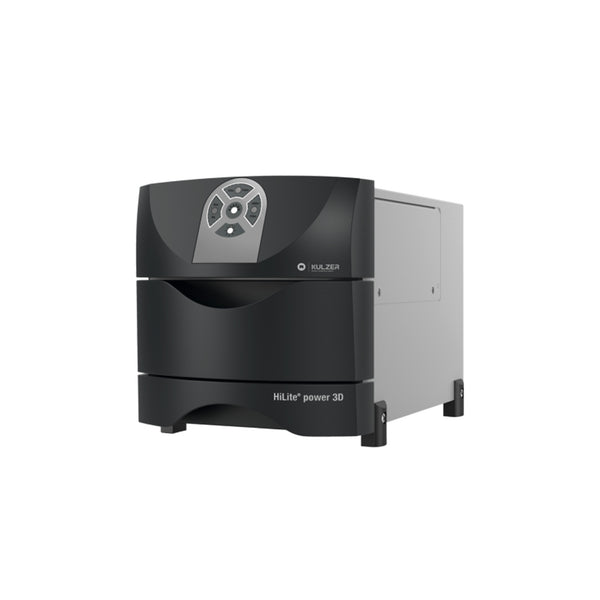

HiLite® power 3D
High-performance light curing unit
HiLite power 3D is our all-rounder light curing unit. Ideal for pre and final polymerising light-curing composites from the Signum, 3D print, Pala and many other product ranges
It convinces with an user-friendly design, a reliable and strong flashlamp and the choice of six light-curing times of 6, 90 and 180 seconds (for veneering material) and 5, 10 and 15 minutes (for 3D print material).
Benefits
- 2nd time mode for composite AND 3D printed material

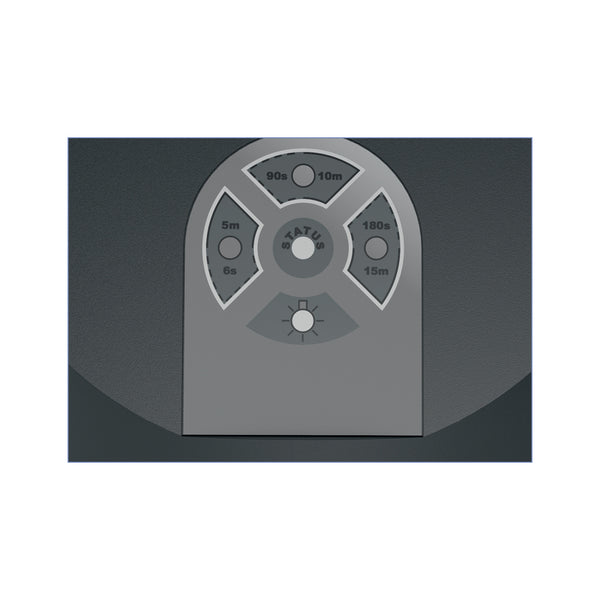

- Easy operation – single button timer control
- 6 polymerization times (6, 90 and 180 seconds / 5, 10 and 15 minutes)
- Blue process timer control LEDs
- High-power flash bulb with long life performance
- Efficient cooling management
- Safety door lock
- Worldwide voltage power supply
- Wide range of light from 390 – 540 nm.
Accessories
- HiLite Power 3D with flashlamp and chip card
- Filter glass
- Pot-shaped reflector
- Object holder
- Mains cable Europe, US/JP
- 2 x Model tray
Specifications
| Mains voltage: |
100/115/230 V
(via voltageselector switch) |
| Rated frequency: |
50 – 60 Hz |
| Flash lamp power: |
200 W |
| Fuse protection: |
T6,3A |
| Power consumption: |
325 VA |
| Dimensions (H x D x W): |
230 x 345 x 225 mm |
| Weight: |
app. 9.5 kg |
| Protection rating: |
Class I |
| Power-on time: |
80 % |
