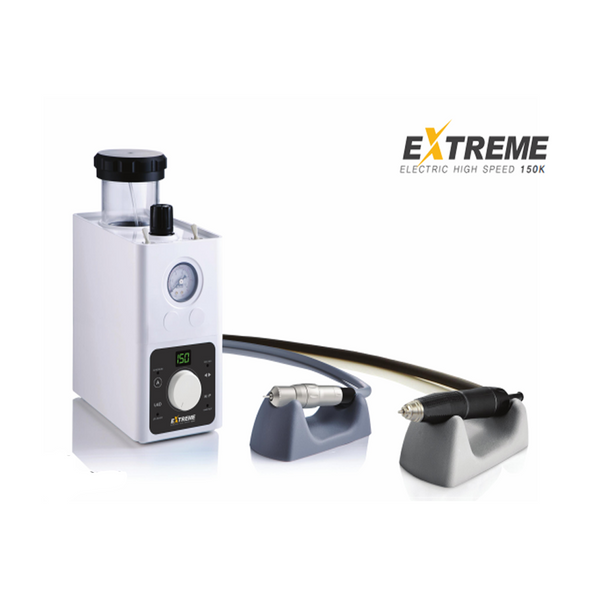

Micro NX EXTREME
Electric High Speed 150K Zirconia Motor
No Carbon! No Catridge!
Product Features
● Powerful torque of the electric motor
The electric motor can reach up to 150,000 rpm. it also boasts of outstanding efficiency in processing zirconia ceramic.
● One-product solution for any material
Both laboratory motor (50,000 rpm) and zirconia-specialized motor(150,000 rpm)
are accessible through a single controller. There’s no need to purchase additional air turbine.
● High-tech brushless motor
MICRO-NX’s cutting-edge brushless motor technology minimizes vibration while
maintaining the power of the electric motor handpiece.
● Direct water spray function
The piece comes with an internal water tank and allows for direct supply from general tubing(if necessary)
● Dual-function: Wet & Dry
The water spray on/off feature enables both wet and dry methods.
● Spray & LED light
The handpiece achieves maximum efficiency through its LED feature and water spray
feature that prevents cracks.
● Anti-Dust mechanism
When handpiece turns, air comes out from its head to prevent dust penetrating handpiece.
● Two stage detachable design
Separate controllers are available for independent controllers
● Electric aqua handpiece : perfect to zirconia
Process zirconia implant 4 times faster. Easy manipulation and minimizes work stress.
Specifications

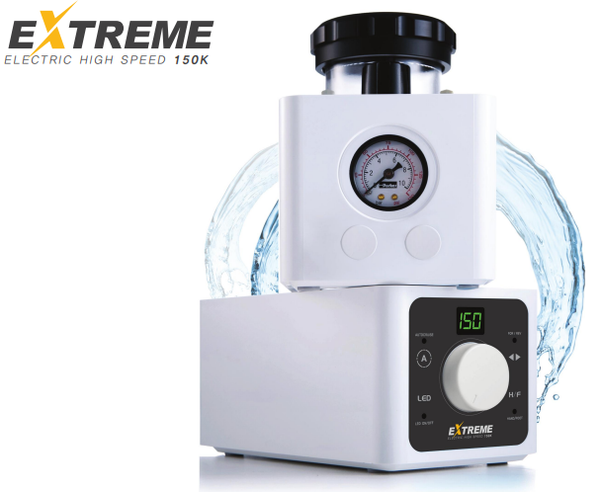

Controller
| Model | ML-A150 |
| Power Supply Voltage | 100-120 / 220-240 V |
| Frenquency | 50/60Hz |
| Power Consumption | 80VA |
| Fuse | 250V - T2.0AH |
| Weight | 3.65Kg |
| Dimension | 115mm(W) x 210mm(W) x 270mm(H) |

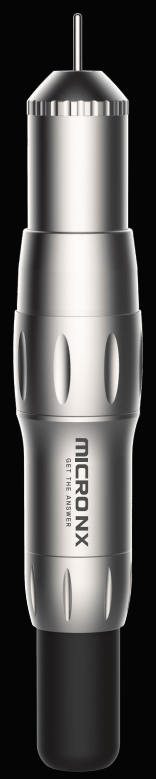

High-Speed Handpiece
| Model | Zirconia trimming handpiece |
| Type | brushless |
| Max.Speed | 150,000 RPM |
| Max.Torque | 4.0 N.cm |
| Dimension | ⌀25 x 101mm (L) |
| Bur | FG bur ⌀1.6(mm) |
| Optic | Yes |
| Internal Water Spray | Yes |
Low-Speed Handpiece
| Model | BL-800C |
| Type | brushless |
| Max.Speed | 50,000 RPM |
| Max.Torque | 7.5 N.cm |
| Weight | 190g |
| Dimension | ⌀25 x 158mm (L) |
| Bur | Bur ⌀2.35(mm) |
Foot Pedal
| Model | FS-60 |
| Function | Motor Operation controller |
| Class of protection | IPX1 |
