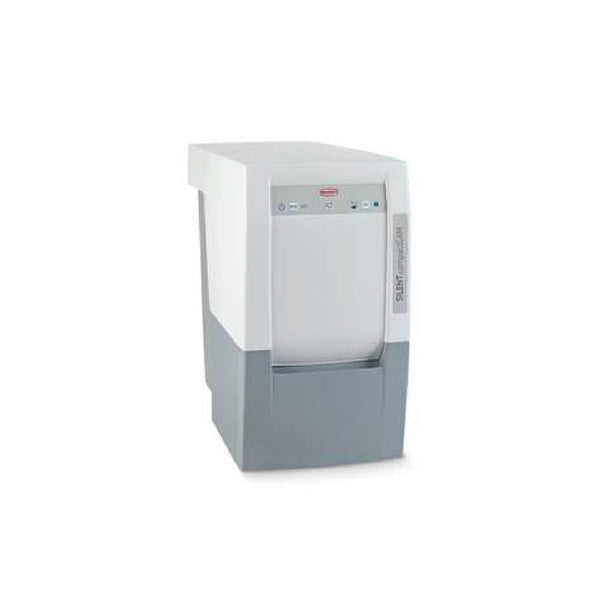

Silent compact cam
Click image to open expanded view
Silent compact cam

Silent compact cam

Login | Register to see price and add to cart.
Login | Register to see price and add to cart.
In stock! Usually ships within 24 hours.

SILENT compactCAM

Extraction unit for CAM systems

Compact, bag-free extraction unit for use with compact, dental CAM units.



Advantage

  • Bi-directional communication between extraction unit and CAM unit thanks to the PLC interface.
  • Low operating noise of max. 55 dB (A).
  • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed).

Detail

  • No follow-up costs due to bag-free dust collection.
  • Working without interruption due to uncomplicated motor change within minutes.



Ordering information




Technical data

Name

SILENT compactCAM, 230-240 V

SILENT compactCAM, 220 V

SILENT compactCAM, 120 V

SILENT compactCAM, 100 V

Article number

29342000

29342500

29343000

29343500

Permissible mains voltage

230–240 V

220 V

120 V

100 V

Permissible mains frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

Nominal voltage

230 V

220 V

120 V

100 V

Power consumption

490 W (230 V)

460 W (220 V)

480 W (120 V)

480 W (100 V)

Volume flow (max.)

2500 l/min (230 V)
1.47 ft³/s (230 V)

2500 l/min (220 V)
1.47 ft³/s (220 V)

2500 l/min (120 V)
1.47 ft³/s (120 V)

2500 l/min (100 V)
1.47 ft³/s (100 V)

Max. depression

219 hPa
3.2 psi

219 hPa
3.2 psi

219 hPa
3.2 psi

219 hPa
3.2 psi

Motor technology

Collector

Collector

Collector

Collector

Filter technology

Bag- free

Bag- free

Bag- free

Bag- free

Filter quality

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

CAM interface

RJ 45 socket

RJ 45 socket

RJ 45 socket

RJ 45 socket

PLC: Input signal

2 x turbine on/off

2 x turbine on/off

2 x turbine on/off

2 x turbine on/off

PLC: Output signal

2 x status information

2 x status information

2 x status information

2 x status information

Mains input fuse

8 A

8 A

8 A

8 A

Number of suction hoses

1

1

1

1

Sound pressure level (LpA) (at max. volume flow)

55 dB(A)

55 dB(A)

55 dB(A)

55 dB(A)

Weight (empty)

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

Dimensions (W x H x D)

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

Ø suction fittings interior

35 mm
1.38 "

35 mm
1.38 "

35 mm
1.38 "

35 mm
1.38 "

Ø suction fittings exterior

40 mm
1.57 "

40 mm
1.57 "

40 mm
1.57 "

40 mm
1.57 "

Fill level dust collector

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal
